Canvas Nema C/CE Rods Canvas Fabric Reinforced Phenolic

Canvas Phenolic Rods



Canvas Nema C/CE Rods Cotton Fabric Reinforced Phenolic - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.
(Grade C certifies to Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201)
(Grade CE certifies to Mil-I-24768/14 FBG, IEC 60893-3 Type 4, PF CC 203)



Nema C/CE Canvas Fabric Reinforced Rods
Stock # / Image Diameter Inches Price/Ft. Purchase Online
KR-1312

.187"

$1.76 Buy Now
KR-1313

.250"

$2.21 Buy Now
KR-1314

.312"

$2.70 Buy Now
KR-1315

.375"

$5.40 Buy Now
KR-1316

.500"

$4.88 Buy Now
KR-1317

.562"

$5.74 Buy Now
KR-1318

.625"

$6.55 Buy Now
KR-1319

.750"

$8.78 Buy Now
KR-1320

.875"

$11.18 Buy Now
KR-1321

1.000"

$14.31 Buy Now
KR-1322

1.125"

$17.44 Buy Now
KR-1323

1.250"

$20.21 Buy Now
KR-1324

1.375"

$23.85 Buy Now
KR-1325

1.500"

$28.08 Buy Now
KR-1326

1.625"

$31.70 Buy Now
KR-1327

1.750"

$38.68 Buy Now
KR-1328

2.000"

$53.62 Buy Now
KR-1329

2.250"

$68.15 Buy Now
KR-1330

2.500"

$84.11 Buy Now
KR-1331

2.750"

$101.25 Buy Now
KR-1332

3.000"

$120.26 Buy Now

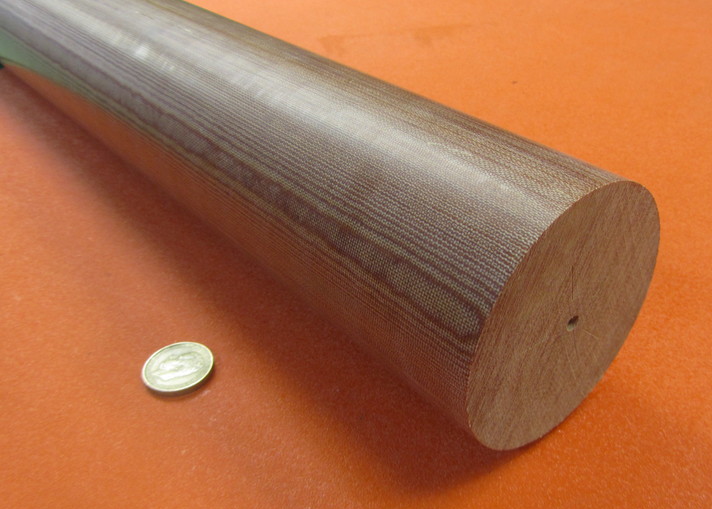

KR-1333

3.250"

$135.97 Buy Now

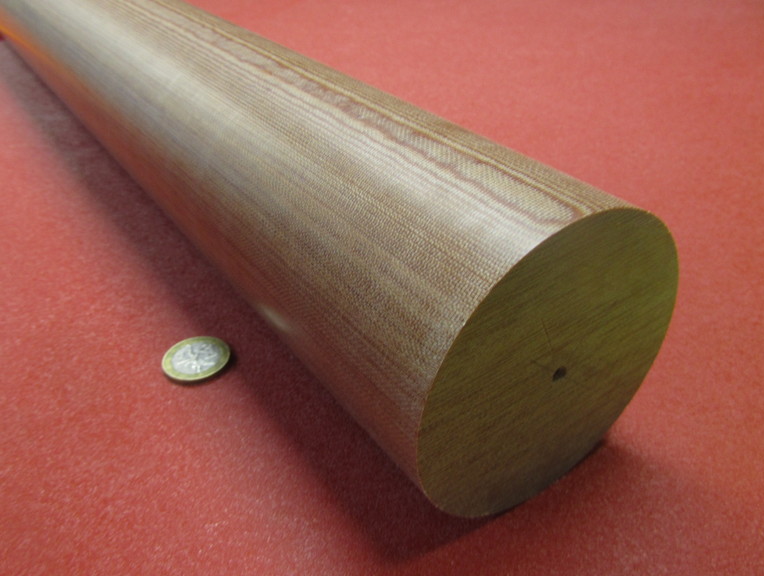

KR-1334

3.500"

$156.85 Buy Now
KR-1335

3.750"

$175.03 Buy Now
KR-1336

4.000"

$204.77 Buy Now
KR-1337

4.500"

$238.91 Buy Now
KR-1338

5.000"

$307.58 Buy Now
KR-1339

6.000"

$387.50 Buy Now
Tolerances

Under 1.375" Dia.

�.001"

1.375" Dia. & Over

�.003"
