G10/FR4 Rods Glass Reinforced Epoxy
G10/FR4 Rods Glass Reinforced Epoxy - natural
(yellowish
to light green) Technical Data Sheet
The most versatile all-around laminate, this grade is a continuous glass woven
fabric base impregnated with an epoxy resin binder. It has extremely high
mechanical strength, good dielectric loss properties, and good electric strength
properties, both wet and dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202
Order G10-FR4 Rods Online-Click Here
| G10 FR4 Rods | ||||
| Diameter Inches | Stock Number |
G10, FR4 Price/foot |
Min. Feet Required for Purchase | Purchase Online |
|
.062" |
KR-1202 | $2.44 | 24 | Buy Now |
|
.093" |
KR-1203 | $2.63 | 24 | Buy Now |
|
.125" |
KR-1204 | $2.94 | 20 | Buy Now |
|
.156" |
KR-1205 | $3.03 | 20 | Buy Now |
|
.187" |
KR-1206 | $3.16 | 16 | Buy Now |
|
.250" |
KR-1207 | $3.48 | 16 | Buy Now |
|
.312" |
KR-1208 | $3.84 | 16 | Buy Now |
|
.375" |
KR-1209 | $4.02 | 12 | Buy Now |
|

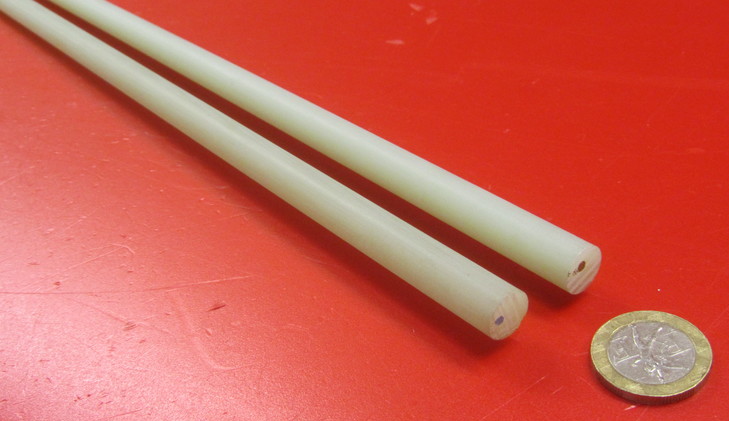

.437" |
KR-1210 | $5.42 | 12 | Buy Now |
|
.500" |
KR-1211 | $6.44 | 8 | Buy Now |
|
.562" |
KR-1212 | $8.06 | 8 | Buy Now |
|
.625" |
KR-1213 | $8.57 | 8 | Buy Now |
|
.750" |
KR-1214 | $11.19 | 4 | Buy Now |
|
.875" |
KR-1215 | $14.17 | 4 | Buy Now |
|
1.000" |
KR-1216 | $16.61 | 4 | Buy Now |
|
1.125" |
KR-1217 | $20.11 | 4 | Buy Now |
|
1.250" |
KR-1218 | $24.23 | 4 | Buy Now |
|
1.375" |
KR-1219 | $28.67 | 4 | Buy Now |
|
1.500" |
KR-1220 | $33.69 | 4 | Buy Now |
|
1.625" |
KR-1221 | $38.47 | 4 | Buy Now |
|
1.750" |
KR-1222 | $47.90 | 4 | Buy Now |
|
2.000" |
KR-1223 | $66.68 | 4 | Buy Now |
|
2.250" |
KR-1224 | $82.95 | 4 | Buy Now |
|
2.500" |
KR-1225 | $102.34 | 4 | Buy Now |
|
2.750" |
KR-1226 | $123.87 | 4 | Buy Now |
|
3.000" |
KR-1227 | $143.97 | 4 | Buy Now |
| 3.250" | KR-1228 | $172.50 | 4 | Buy Now |
|
3.500" |
KR-1229 | $201.46 | 4 | |
|
3.750" |
KR-1230 | $230.55 | 4 | Buy Now |
|
4.000" |
KR-1231 | $257.38 | 4 | Buy Now |
|
4.500" |
KR-2899 | $317.08 | 4 | Buy Now |
|
5.000" |
KR-1232 | $411.32 | 4 | Buy Now |
|
6.000" |
KR-1233 | $578.71 | 4 | Buy Now |
| Tolerances | ||||
|
under 1.375" tol |
±.001" |
|||
|
1.375" & over |
±.003" |
|||
