NEMA G5 and G9 Glass Reinforced Melamine Tubes - .062" Wall

1/16" Wall Thickness G5, G9 Tubes

NEMA G5, G9 Glass Reinforced Melamine - natural (grayish brown) Technical Data Sheet
This grade is composed of a continuous glass woven cloth base impregnated with a melamine resin binder. Melamines are the hardest of all laminates, exhibiting good dimensional stability and arc resistance. It is also caustic resistant.
Certifies to Mil-I-24768/1 GME    Chemical Resistance Chart

NEMA grades G5 and G9 Glass-Cloth Reinforced Melamine -- natural color is typically a grayish brown. These grades are composed of a continuous glass woven cloth base impregnated with a melamine resin binder. (Melamine resins, once cured, are the hardest, most rigid and abrasion resistant of the standard resins employed in the production of industrial laminates. However, prolonged exposure to high temperature can adversely affect its mechanical and electrical strength properties. Arc resistance, however, may remain unaffected despite excessive thermal exposure.) Melamines are the hardest of laminates, exhibiting good dimensional stability and arc resistance. It's also caustic resistant. A key difference between NEMA Grades G5 and G9 are that G9 is more resistant to the elements of the environment. Thus, G9 can be safely substituted where G5 is called for.



NEMA G-5 MIL-I-24768/8 GMG , IEC 60893-3 Type 3 MF GC 201

NEMA G-9 MIL-I-24768/1 GME, IEC 60893-3 Type 3 MF GC 201





NEMA G5, G9 Tube Tubes Wall Thickness Options

.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00" G5/G9 Sheets G5/G9 Rods











NEMA G5 and G9 Tubes - .062" Wall
Stock #/ Image OD Inches ID Inches Min. Ft to Purchase  Price/Ft Purchase Online

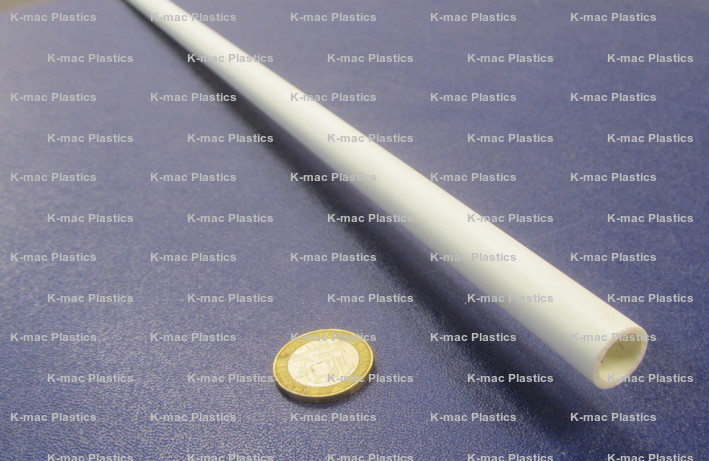

KM-1610 .250 .125 21 $16.70 Buy Now
KM-1612 .313 .187 18 $20.58 Buy Now
KM-1616 .375 .250 18 $21.70 Buy Now
KM-1620 .438 .312 15 $23.33 Buy Now

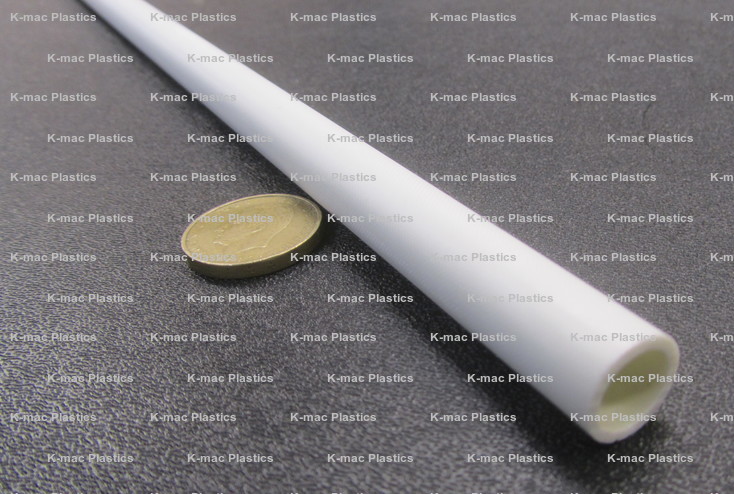

KM-20661 .500 .375 15 $24.40 Buy Now
KM-1628 .563 .437 15 $25.45 Buy Now
KM-1632 .625 .500 15 $27.18 Buy Now
KM-1638 .688 .562 12 $28.25 Buy Now
KM-1647 .750 .625 12 $29.33 Buy Now
KM-1653 .813 .687 12 $30.83 Buy Now
KM-1656 .875 .750 15 $22.55 Buy Now
KM-20681 .938 .812 15 $23.15 Buy Now
KM-1662 1.00 .875 15 $24.33 Buy Now
KM-20679 1.062 .937 15 $25.18 Buy Now
KM-1668 1.125 1.00 15 $25.93 Buy Now
KM-20677 1.187 1.062 15 $27.05 Buy Now
KM-18079 1.250 1.125 12 $28.33 Buy Now
KM-18080 1.312 1.187 12 $29.55 Buy Now
KM-1673 1.375 1.250 12 $30.78 Buy Now
KM-18082 1.437 1.312 12 $31.98 Buy Now
KM-18083 1.500 1.375 12 $33.15 Buy Now
KM-18084 1.562 1.437 12 $34.30 Buy Now
KM-1678 1.625 1.500 12 $35.43 Buy Now
KM-18086 1.688 1.562 12 $36.50 Buy Now
KM-18076 1.750 1.625 9 $37.58 Buy Now
KM-18088 1.812 1.687 9 $38.63 Buy Now
KM-1683 1.875 1.750 9 $39.65 Buy Now
KM-18090 1.937 1.812 9 $40.65 Buy Now
KM-18091 2.00 1.875 9 $41.63 Buy Now
KM-18092 2.062 1.937 9 $42.58 Buy Now
KM-1688 2.125 2.00 9 $43.53 Buy Now
KM-18094 2.188 2.062 9 $44.43 Buy Now
KM-18095 2.250 2.125 9 $45.30 Buy Now
KM-18096 2.312 2.187 9 $46.15 Buy Now
KM-1693 2.375 2.250 9 $46.98 Buy Now
KM-17574 2.437 2.312 9 $47.78 Buy Now
KM-17922 2.50 2.375 9 $48.55 Buy Now
KM-17621 2.562 2.437 9 $49.33 Buy Now
KM-1698 2.625 2.50 9 $50.05 Buy Now
KM-17623 2.688 2.562 9 $50.75 Buy Now
KM-17624 2.750 2.625 9 $51.43 Buy Now
KM-17625 2.812 2.687 9 $52.10 Buy Now
KM-1703 2.875 2.750 9 $52.73 Buy Now
KM-17634 2.937 2.812 9 $53.33 Buy Now
KM-17635 3.000 2.875 9 $53.93 Buy Now
KM-17636 3.062 2.937 9 $54.43 Buy Now
KM-1708 3.125 3.000 9 $54.88 Buy Now
KM-17638 3.188 3.062 9 $55.85 Buy Now
KM-17609 3.250 3.125 9 $56.80 Buy Now
KM-17630 3.312 3.187 9 $57.78 Buy Now
KM-1713 3.375 3.250 9 $58.73 Buy Now
KM-17599 3.437 3.312 9 $59.65 Buy Now
KM-17583 3.50 3.375 9 $60.60 Buy Now
KM-17584 3.562 3.437 9 $61.53 Buy Now
KM-1718 3.625 3.50 6 $62.45 Buy Now
KM-17586 3.687 3.562 6 $63.38 Buy Now
KM-17576 3.750 3.625 6 $64.28 Buy Now
KM-17588 3.812 3.687 6 $65.18 Buy Now
KM-1723 3.875 3.750 6 $66.08 Buy Now
KM-17590 3.937 3.812 6 $66.98 Buy Now
KM-17591 4.00 3.875 6 $67.88 Buy Now
KM-17592 4.062 3.937 6 $68.75 Buy Now
KM-1728 4.125 4.00 6 $69.63 Buy Now
KM-17594 4.187 4.062 6 $70.50 Buy Now
KM-17595 4.250 4.125 6 $71.35 Buy Now
KM-17596 4.312 4.187 6 $72.20 Buy Now
KM-17565 4.375 4.250 6 $73.05 Buy Now
KM-17563 4.437 4.312 6 $73.90 Buy Now
KM-17585 4.500 4.375 6 $74.75 Buy Now
KM-17556 4.562 4.438 6 $75.58 Buy Now
KM-1734 4.625 4.500 6 $76.40 Buy Now
KM-20675 4.687 4.562 6 $77.23 Buy Now
KM-20674 4.750 4.625 6 $78.03 Buy Now
KM-20673 4.812 4.687 6 $78.85 Buy Now
KM-20672 4.875 4.750 6 $79.65 Buy Now
KM-20642 4.937 4.812 6 $80.45 Buy Now
KM-20688 5.00 4.875 6 $81.23 Buy Now
KM-20659 5.062 4.937 6 $81.78 Buy Now
KM-1739 5.125 5.00 6 $82.28 Buy Now
KM-20629 5.187 5.062 6 $82.78 Buy Now
KM-20628 5.250 5.125 6 $83.25 Buy Now
KM-20627 5.312 5.187 6 $83.73 Buy Now
KM-20626 5.375 5.250 6 $84.18 Buy Now
KM-20625 5.437 5.313 6 $84.63 Buy Now
KM-20624 5.50 5.375 6 $85.05 Buy Now
KM-20613 5.562 5.437 6 $85.48 Buy Now
KM-1745 5.625 5.50 6 $85.88 Buy Now
KM-20622 5.688 5.562 6 $86.25 Buy Now
KM-20631 5.750 5.625 6 $86.65 Buy Now
KM-20620 5.812 5.687 6 $87.00 Buy Now
KM-20619 5.875 5.750 6 $87.35 Buy Now
KM-20618 5.938 5.812 6 $87.70 Buy Now
KM-20617 6.000 5.875 6 $88.03 Buy Now
KM-20616 6.063 5.937 6 $88.35 Buy Now
KM-1751 6.125 6.000 6 $88.65 Buy Now
KM-20640 6.187 6.062 6 $88.93 Buy Now
KM-20621 6.250 6.125 6 $89.20 Buy Now
KM-20623 6.312 6.187 6 $89.48 Buy Now
KM-17557 6.375 6.250 6 $89.73 Buy Now
KM-17558 6.437 6.312 6 $89.98 Buy Now
KM-17559 6.500 6.375 6 $90.20 Buy Now
KM-17560 6.562 6.437 6 $90.40 Buy Now
KM-17561 6.625 6.500 6 $90.60 Buy Now
KM-17562 6.688 6.562 6 $90.80 Buy Now
KM-17575 6.750 6.625 6 $90.98 Buy Now
KM-17554 6.812 6.687 6 $91.13 Buy Now
KM-17566 6.875 6.750 6 $91.28 Buy Now
KM-17567 6.938 6.812 6 $91.43 Buy Now
KM-17568 7.000 6.875 6 $90.83 Buy Now
KM-17569 7.062 6.938 6 $91.73 Buy Now
KM-17570 7.125 7.000 6 $92.60 Buy Now
KM-17571 7.187 7.062 6 $93.48 Buy Now
KM-17572 7.250 7.125 6 $94.38 Buy Now
KM-17573 7.312 7.187 6 $95.25 Buy Now
KM-17707 7.375 7.250 6 $96.15 Buy Now
KM-17533 7.437 7.312 6 $97.03 Buy Now
KM-17664 7.500 7.375 6 $97.93 Buy Now
KM-17794 7.562 7.437 6 $98.83 Buy Now
KM-17795 7.625 7.500 6 $99.70 Buy Now
KM-17796 7.688 7.562 6 $100.60 Buy Now
KM-17797 7.750 7.625 6 $101.50 Buy Now
KM-17798 7.812 7.687 6 $102.40 Buy Now
KM-17799 7.875 7.750 6 $103.30 Buy Now
KM-17800 7.938 7.812 6 $104.20 Buy Now
KM-17801 8.000 7.875 6 $105.10 Buy Now
KM-17814 8.062 7.937 6 $106.00 Buy Now
KM-17803 8.125 8.000 6 $106.90 Buy Now
KM-17793 8.188 8.062 6 $107.80 Buy Now
KM-17805 8.250 8.125 6 $108.70 Buy Now
KM-18756 8.312 8.187 6 $109.60 Buy Now
KM-17806 8.375 8.250 6 $110.53 Buy Now
KM-18186 8.437 8.312 6 $111.43 Buy Now
KM-17807 8.500 8.375 3 $112.33 Buy Now
KM-17808 8.562 8.437 3 $113.25 Buy Now
KM-17809 8.625 8.500 3 $114.15 Buy Now
KM-17810 8.688 8.625 3 $115.05 Buy Now
KM-17811 8.750 8.687 3 $115.98 Buy Now
KM-17812 8.812 8.75 3 $116.80 Buy Now
KM-17783 8.875 8.812 3 $117.65 Buy Now







nominal inches,
diameter

plus or minus tolerance, inches

ID inside diameter

OD outside diameter

steel
mandrel

built-up
mandrel

.125" -.749"

.003"

-

.005"

.750" - 1.999"

.004"

-

.005"

2.000" - 4.000"

.006"

-

.008"



*turned

*as wound

4.001" - 12.000"

.010"

-

.025"

plus only

12.001" - 18.000"

.030"

.060"

.030"

plus only

18.001" - 24.000"

.040"

.075"

.035"

plus only

24.001" - 48.000"

.060"

.090"

.040"

plus only

*Note: tubing over 8.000" OD supplied as wound (turned OD quoted on request)
