G7 Glass Reinforced Silicone Sheets
G7 Sheet Glass Reinforced Silicone - natural (cream to white)
Technical Data Sheet
Composed of a continuous glass woven cloth base
impregnated with a silicone resin binder, this grade has excellent heat and arc
resistance. It has extremely good dielectric loss properties under dry
conditions and good electrical properties under humid conditions, although the
percentage of change is high.
NEMA G-7 MIL-I-24768/17 GSG, IEC 60893-3 Type 6 SI GC 201
| G-7
Plates and Sheets
Order G-7 Sheets Online-Click Here
|
|||||
| Thickness Inches | Width Inches | Length Inches | Stock # | Price | Purchase Online |
| 0.031 | 12 | 12 | KS-5904 | $19.75 | 4 Sheet Min. |
| 0.063 | 12 | 12 | KS-2044 | $53.75 | Buy Now |
| 0.094 | 12 | 12 | KS-2051 | $79.80 | Buy Now |
| 0.125 | 12 | 12 | KS-2058 | $106.55 | Buy Now |
| 0.188 | 12 | 12 | KS-2065 | $159.38 | Buy Now |
| 0.250 | 12 | 12 | KS-2072 | $213.08 | Buy Now |
| 0.313 | 12 | 12 | KS-2079 | $265.93 | Buy Now |
| 0.375 | 12 | 12 | KS-2086 | $319.63 | Buy Now |
| 0.500 | 12 | 12 | KS-2093 | $426.18 | Buy Now |
| 0.625 | 12 | 12 | KS-2100 | $532.70 | Buy Now |

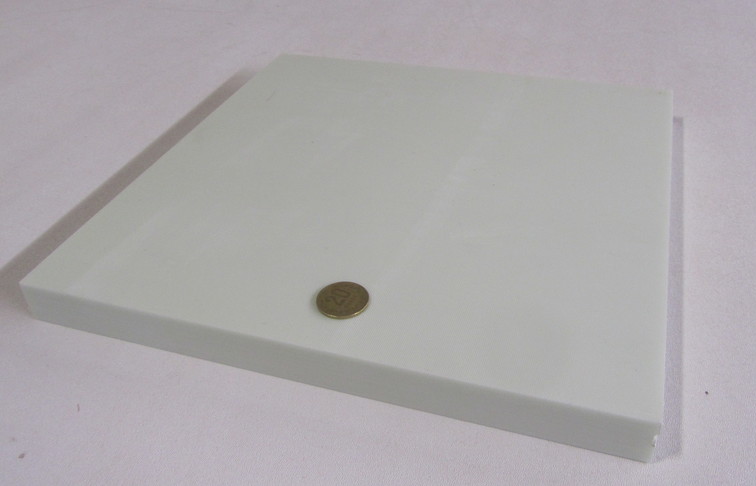

| 0.750 | 12 | 12 | KS-2107 | $639.23 | Buy Now |
| 0.875 | 12 | 12 | KS-2114 | $745.75 | Buy Now |

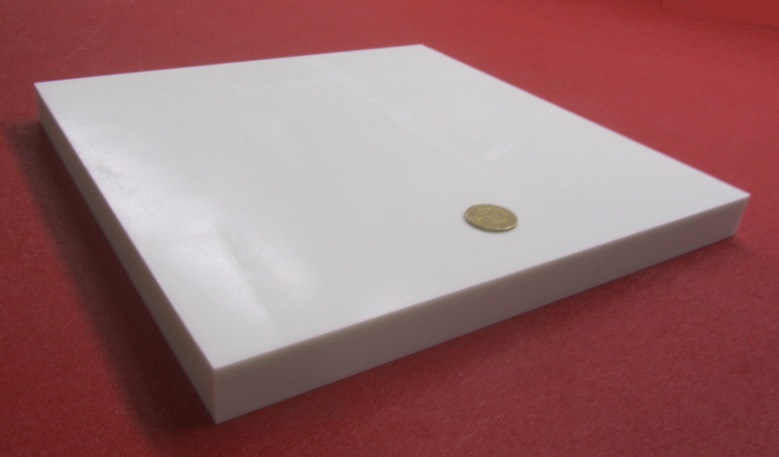

| 1.000 | 12 | 12 | KS-2121 | $745.75 | Buy Now |
| 0.031 | 12 | 24 | KS-5905 | $37.32 | 2 Sheet Min |
| 0.063 | 12 | 24 | KS-2045 | $106.15 | Buy Now |
| 0.094 | 12 | 24 | KS-2052 | $157.65 | Buy Now |
| 0.125 | 12 | 24 | KS-2059 | $212.33 | Buy Now |
| 0.188 | 12 | 24 | KS-2066 | $317.63 | Buy Now |
| 0.250 | 12 | 24 | KS-2073 | $424.63 | Buy Now |
| 0.313 | 12 | 24 | KS-2080 | $529.93 | Buy Now |
| 0.375 | 12 | 24 | KS-2087 | $636.95 | Buy Now |
| 0.500 | 12 | 24 | KS-2094 | $628.45 | Buy Now |
| 0.625 | 12 | 24 | KS-2101 | $785.55 | Buy Now |
| 0.750 | 12 | 24 | KS-2108 | $1,273.88 | Buy Now |
| 0.875 | 12 | 24 | KS-2115 | $1,070.05 | Buy Now |
| 1.000 | 12 | 24 | KS-2122 | $1,222.92 | Buy Now |
| 0.063 | 12 | 36 | KS-2046 | $158.60 | Buy Now |
| 0.094 | 12 | 36 | KS-2053 | $235.45 | Buy Now |
| 0.125 | 12 | 36 | KS-2060 | $318.08 | Buy Now |
| 0.188 | 12 | 36 | KS-2067 | $475.85 | Buy Now |
| 0.250 | 12 | 36 | KS-2074 | $636.20 | Buy Now |
| 0.313 | 12 | 36 | KS-2081 | $587.52 | Buy Now |
| 0.375 | 12 | 36 | KS-2088 | $706.16 | Buy Now |
| 0.500 | 12 | 36 | KS-2095 | $1,272.35 | Buy Now |
| 0.625 | 12 | 36 | KS-2102 | $1,145.12 | Buy Now |
| 0.750 | 12 | 36 | KS-2109 | $1,374.16 | Buy Now |
| 0.875 | 12 | 36 | KS-2116 | $1,603.19 | Buy Now |
| 1.000 | 12 | 36 | KS-2123 | $1,475.94 | Buy Now |
| 0.063 | 12 | 48 | KS-2047 | $211.03 | Buy Now |
| 0.094 | 12 | 48 | KS-2054 | $313.30 | Buy Now |
| 0.125 | 12 | 48 | KS-2061 | $423.88 | Buy Now |
| 0.188 | 12 | 48 | KS-2068 | $634.13 | Buy Now |
| 0.250 | 12 | 48 | KS-2075 | $627.32 | Buy Now |
| 0.313 | 12 | 48 | KS-2082 | $1,057.98 | Buy Now |
| 0.375 | 12 | 48 | KS-2089 | $915.55 | Buy Now |
| 0.500 | 12 | 48 | KS-2096 | $1,220.72 | Buy Now |
| 0.625 | 12 | 48 | KS-2103 | $2,119.35 | Buy Now |
| 0.750 | 12 | 48 | KS-2110 | $1,475.06 | Buy Now |
| 0.875 | 12 | 48 | KS-2117 | $1,720.89 | Buy Now |
| 1.000 | 12 | 48 | KS-2124 | $1,966.74 | Buy Now |
| 0.031 | 24 | 24 | KS-5906 | $74.30 | Buy Now |
| 0.063 | 24 | 24 | KS-2048 | $275.68 | Buy Now |
| 0.094 | 24 | 24 | KS-2055 | $409.35 | Buy Now |
| 0.125 | 24 | 24 | KS-2062 | $557.48 | Buy Now |
| 0.188 | 24 | 24 | KS-2069 | $617.12 | Buy Now |
| 0.250 | 24 | 24 | KS-2076 | $825.03 | Buy Now |
| 0.313 | 24 | 24 | KS-2083 | $1,001.81 | Buy Now |
| 0.375 | 24 | 24 | KS-2090 | $1,204.11 | Buy Now |
| 0.500 | 24 | 24 | KS-2097 | $1,605.46 | Buy Now |
| 0.625 | 24 | 24 | KS-2104 | $1,616.62 | Buy Now |
| 0.750 | 24 | 24 | KS-2111 | $1,939.94 | Buy Now |
| 0.875 | 24 | 24 | KS-2118 | $2,107.17 | Buy Now |
| 1.000 | 24 | 24 | KS-2125 | $2,408.20 | Buy Now |
| 0.031 | 24 | 36 | KS-5907 | $107.62 | Buy Now |
| 0.063 | 24 | 36 | KS-2049 | $313.60 | Buy Now |
| 0.094 | 24 | 36 | KS-2056 | $465.63 | Buy Now |
| 0.125 | 24 | 36 | KS-2063 | $633.93 | Buy Now |
| 0.188 | 24 | 36 | KS-2070 | $701.80 | Buy Now |
| 0.250 | 24 | 36 | KS-2077 | $912.87 | Buy Now |
| 0.313 | 24 | 36 | KS-2084 | $1,139.26 | Buy Now |
| 0.375 | 24 | 36 | KS-2091 | $1,369.31 | Buy Now |
| 0.500 | 24 | 36 | KS-2098 | $1,470.74 | Buy Now |
| 0.625 | 24 | 36 | KS-2105 | $1,838.41 | Buy Now |
| 0.750 | 24 | 36 | KS-2112 | $2,053.96 | Buy Now |
| 0.875 | 24 | 36 | KS-2119 | $2,396.29 | Buy Now |
| 1.000 | 24 | 36 | KS-2126 | $2,738.61 | Buy Now |
| 0.063 | 24 | 48 | KS-2050 | $548.80 | Buy Now |
| 0.094 | 24 | 48 | KS-2057 | $603.01 | Buy Now |
| 0.125 | 24 | 48 | KS-2064 | $823.86 | Buy Now |
| 0.188 | 24 | 48 | KS-2071 | $1,199.18 | Buy Now |
| 0.250 | 24 | 48 | KS-2078 | $1,603.19 | Buy Now |
| 0.313 | 24 | 48 | KS-2085 | $1,611.73 | Buy Now |
| 0.375 | 24 | 48 | KS-2092 | $1,937.17 | Buy Now |
| 0.500 | 24 | 48 | KS-2099 | $4,453.30 | Buy Now |
| 0.625 | 24 | 48 | KS-2106 | $2,783.31 | Buy Now |
| 0.750 | 24 | 48 | KS-2113 | $3,339.98 | Buy Now |
| 0.875 | 24 | 48 | KS-2120 | $3,896.64 | Buy Now |
| 1.000 | 24 | 48 | KS-2127 | $4,453.29 | Buy Now |
| .010 | 36 | 48 | KS-5691 | $242.08 | Buy Now |
| .016 | 36 | 48 | KS-5685 | $250.18 | Buy Now |
| .020 | 36 | 48 | KS-5695 | $316.90 | Buy Now |
| .031 | 36 | 48 | KS-5712 | $345.34 | Buy Now |
| .047 | 36 | 48 | KS-5713 | $467.06 | Buy Now |
| .062 | 36 | 48 | KS-5714 | $539.52 | Buy Now |
| .094 | 36 | 48 | KS-5986 | $647.41 | Buy Now |
| .125 | 36 | 48 | KS-5908 | $699.94 | Buy Now |
| .156 | 36 | 48 | KS-5987 | $984.17 | Buy Now |
| .188 | 36 | 48 | KS-5909 | $1,013.30 | Buy Now |
| .250 | 36 | 48 | KS-5910 | $1,312.34 | Buy Now |
| .375 | 36 | 48 | KS-5911 | $1,852.74 | Buy Now |
| .500 | 36 | 48 | KS-5912 | $2,399.72 | Buy Now |
| .625 | 36 | 48 | KS-5990 | $3,671.08 | Buy Now |
| .750 | 36 | 48 | KS-5913 | $3,937.03 | Buy Now |
| .875 | 36 | 48 | KS-5991 | $4,949.17 | Buy Now |
| 1.00 | 36 | 48 | KS-5994 | $5,107.52 | Buy Now |
| 1.25 | 36 | 48 | KS-5992 | $6,798.30 | Buy Now |
| 1.50 | 36 | 48 | KS-5993 | $8,133.27 | Buy Now |
| 1.75 | 36 | 48 | KS-5994 | $9,898.32 | Buy Now |
| 2.00 | 36 | 48 | KS-5995 | $11,747.47 | Buy Now |
Tolerances for Sheet Thickness Inches
| .020-.030 ±.004" | .093±.009" | .250±.022" | .500±.036" | .875±.046" | 1.50±.061" |
| .031 ±.005" | .125±.012" | .313±.026" | .625±.040" | 1.00±.046" | 1.75±.065" |
| .062 ±.0075" | .188±.019" | .375±.030" | .750±.043" | 1.25±.049" | 2.00±.069" |
