NEMA X, XX, XXX Paper Reinforced Phenolic Rods
NEMA X/XX/XXX Rods Paper Reinforced Phenolic - natural (tan)
Technical Data Sheet
Composed of a paper base impregnated with a phenolic resin binder, it has good
electric strength properties with fair mechanical strength.
Outstanding for use as template material and or backup
material.
X MIL-I-24768/12 PBM, IEC 60893-3 Type 4 PF CP 201
XX MIL-I-24768/11 PBG, IEC 60893-3 Type 4 PF CP 203
XXX MIL-I-24768/10 PBE, IEC 60893-3 Type 4 PF CP 201
| NEMA X, XX, XXX Paper Reinforced Rods | |||
| Part # | Diameter (in.) | Price Per Foot | Order Online |
|---|---|---|---|
| KR-1289 | .062" | $1.82 | Add to Order |
| KR-1290 | .093" | $1.62 | Add to Order |

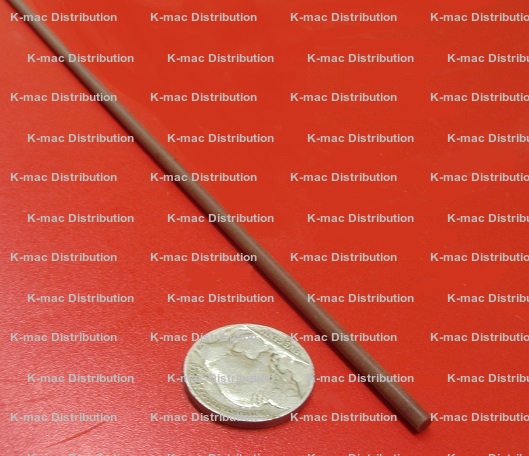

| KR-1291 | .125" | $1.69 | Add to Order |

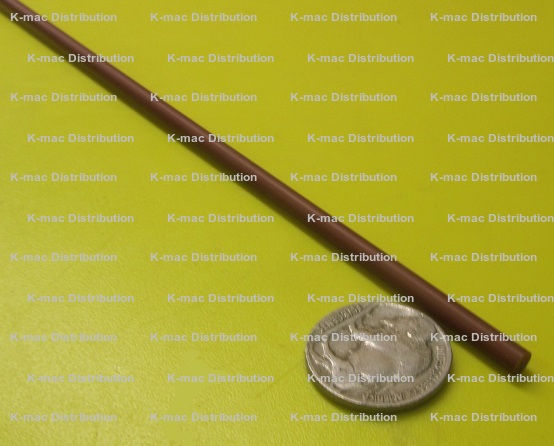

| KR-1292 | .156" | $1.87 | Add to Order |

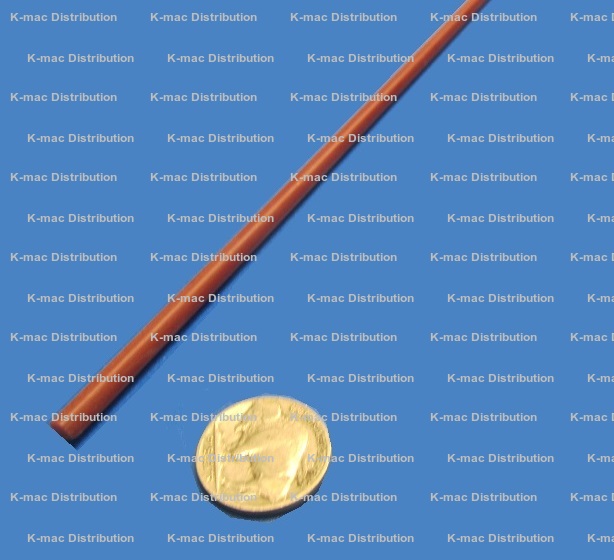

| KR-1293 | .187" | $2.11 | Add to Order |

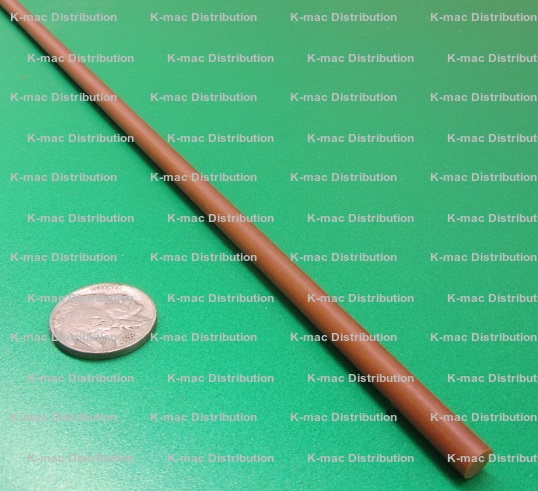

| KR-1294 | .250" | $2.63 | Add to Order |

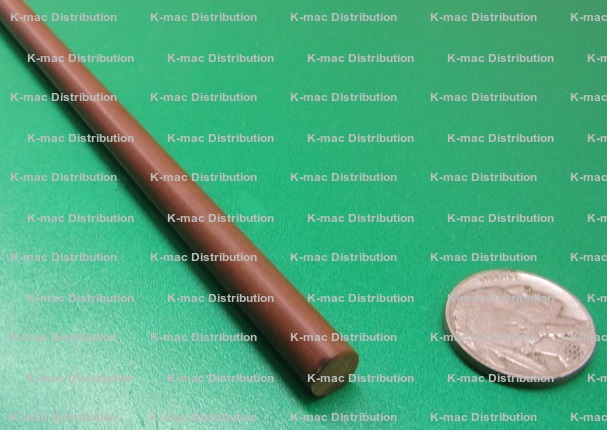

| KR-1295 | .312" | $3.22 | Add to Order |

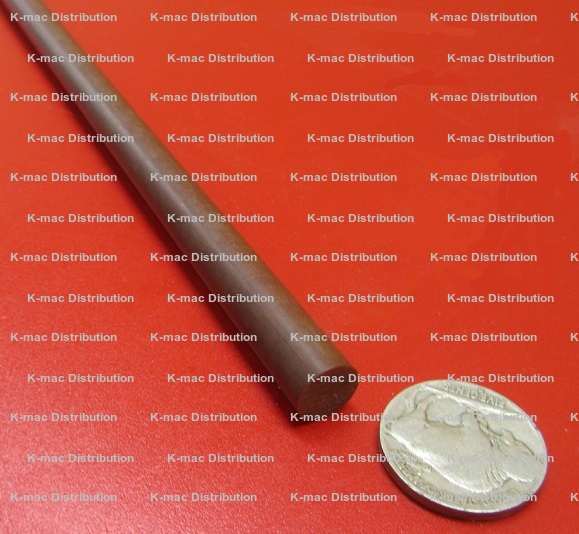

| KR-1296 | .375" | $3.62 | Add to Order |

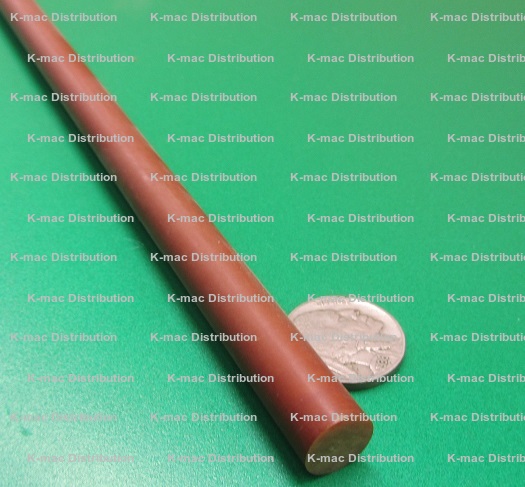

| KR-1297 | .437" | $4.61 | Add to Order |

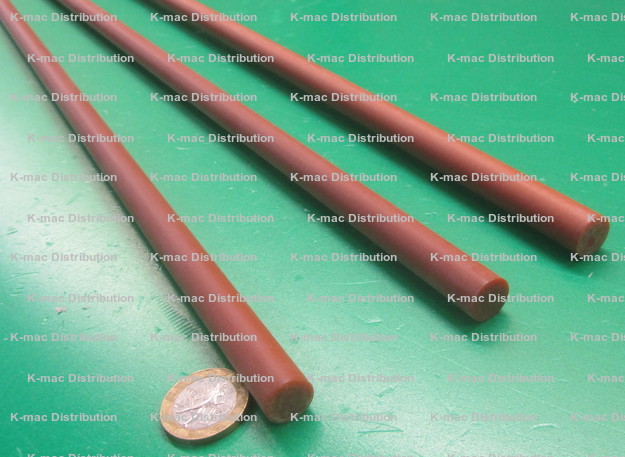

| KR-1298 | .500" | $5.81 | Add to Order |

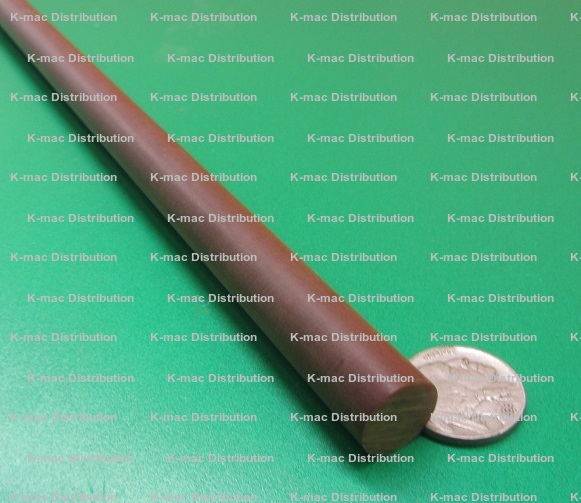

| KR-1299 | .562" | $6.84 | Add to Order |

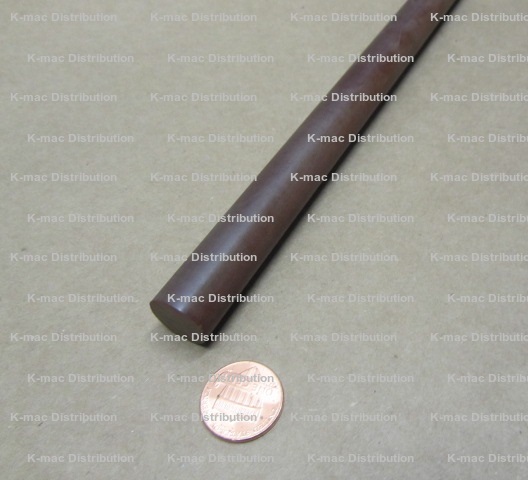

| KR-1300 | .625" | $7.79 | Add to Order |
| KR-1301 | .750" | $10.40 | Add to Order |
| KR-3159 | .875" | $13.25 | Add to Order |
| KR-1302 | 1.000" | $16.97 | Add to Order |

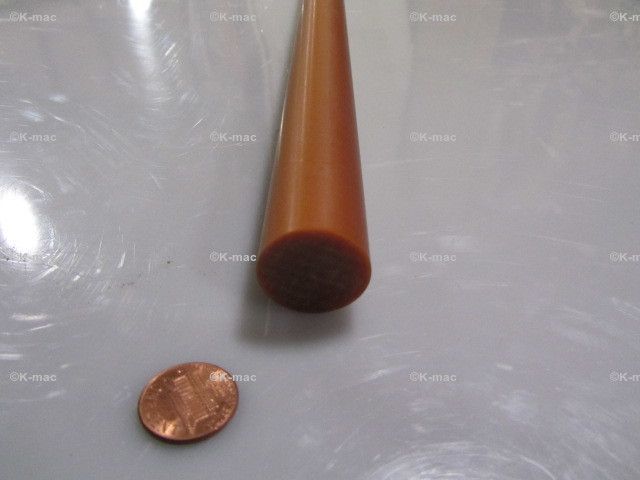

| KR-1303 | 1.125" | $20.68 | Add to Order |
| KR-1304 | 1.250" | $23.92 | Add to Order |

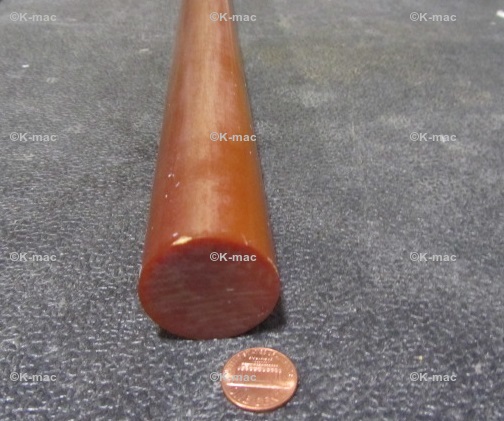

| KR-1305 | 1.375" | $28.26 | Add to Order |
| KR-1306 | 1.500" | $33.23 | Add to Order |
| KR-1307 | 1.625" | $37.53 | Add to Order |
| KR-1308 | 1.750" | $45.77 | Add to Order |
| KR-1309 | 2.000" | $63.41 | Add to Order |
| Tolerances | |||
Under 1.375" Dia. |
± .001" | ||
1.375" Dia. & Over |
± .003" | ||
| Rev. 05-26, 03-25, 03-24, 04-23 | |||
