G10/FR4 Glass Reinforced Epoxy Phenolic Copper Clad Sheet

Copper Clad G10FR4 Sheets

Copper Clad Sheet- G10/FR4 Glass Reinforced Epoxy



Technical Data



Copper Clad G10/FR4 Phenolic Sheet

Military Specifications and Underwriters Laboratories (UL) Ratings UL 94V0 MIL-I-24768

Operating Temp. 201F to 300F

Lead Times May Apply

Thickness (in.) Width (in.) Length (in.) Oz Copper # Sides Cladded Part # Min Order Qty Price Order Online
.005" 36 48 2 One Side Copper KS-16051 6 $283.88 Add to Order
.005" 36 48 1 One Side Copper KS-16027 7 $223.22 Add to Order
.005" 36 48 1/2 One Side Copper KS-16110 7 $217.47 Add to Order
.005" 36 48 1/2 Two Sided Copper KS-16099 6 $267.15 Add to Order
.005" 36 48 1 Two Sided Copper KS-16066 6 $272.90 Add to Order
.005" 36 48 2 Two Sided Copper KS-16064 4 $366.51 Add to Order
.008" 36 48 1 One Side Copper KS-16110Q 5 $233.22 *
.008" 36 48 2 One Side Copper KS-16110X 5 $316.94 *
.010" 36 48 2 One Side Copper KS-16052 5 $328.44 Add to Order
.010" 36 48 1 One Side Copper KS-16028 6 $265.19 Add to Order
.010" 36 48 1/2 One Side Copper KS-16111 6 $259.44 Add to Order
.010" 36 48 1 Two Sided Copper KS-16014 5 $314.87 Add to Order
.010" 36 48 1/2 Two Sided Copper KS-16013 5 $309.12 Add to Order
.010" 36 48 2 Two Sided Copper KS-16065 4 $408.48 Add to Order
.013" 36 48 1 Two Sided Copper KS-16008X 7 $439.47 *
.015" 36 48 2 One Side Copper KS-16053 5 $336.66 Add to Order
.015" 36 48 1 One Side Copper KS-16029 6 $278.65 Add to Order
.015" 36 48 1/2 One Side Copper KS-16121 6 $267.15 Add to Order
.015" 36 48 1 Two Sided Copper KS-16097 5 $322.58 Add to Order
.015" 36 48 1/2 Two Sided Copper KS-16016 5 $316.83 Add to Order
.015" 36 48 2 Two Sided Copper KS-16042 4 $416.07 Add to Order
.020" 36 48 2 One Side Copper KS-16054 5 $369.50 Add to Order
.020" 36 48 1 One Side Copper KS-16030 5 $309.58 Add to Order
.020" 36 48 1/2 One Side Copper KS-16113 5 $298.08 Add to Order
.020" 36 48 1 Two Sided Copper KS-16006 5 $353.51 Add to Order
.020" 36 48 1/2 Two Sided Copper KS-16017 5 $347.76 Add to Order
.020" 36 48 2 Two Sided Copper KS-16059 4 $447.12 Add to Order
.025" 36 48 2 One Side Copper KS-16055 4 $417.57 Add to Order
.025" 36 48 1 One Side Copper KS-16007 5 $318.78 Add to Order
.025" 36 48 1/2 One Side Copper KS-16105 5 $307.28 Add to Order
.025" 36 48 1 Two Sided Copper KS-15998 4 $362.71 Add to Order
.025" 36 48 1/2 Two Sided Copper KS-16018 4 $356.96 Add to Order
.025" 36 48 2 Two Sided Copper KS-16057 3 $492.37 Add to Order

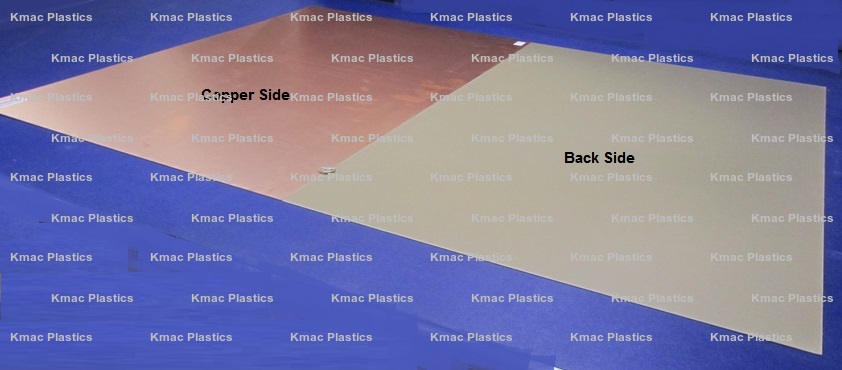

.031" 24 36 1 One Side Copper KS-5248K 1 $158.13 Add to Order
.031" 24 36 1 Two Side Copper KS-5246K 1 $183.75 Add to Order
.031" 36 48 2 One Side Copper KS-16056 4 $379.27 Add to Order
.031" 36 48 1 One Side Copper KS-16024 5 $354.83 Add to Order
.031" 36 48 1/2 One Side Copper KS-16115 5 $343.33 Add to Order
.031" 36 48 1 Two Sided Copper KS-16008 4 $398.76 Add to Order
.031" 36 48 1/2 Two Sided Copper KS-16019 4 $393.01 Add to Order
.031" 36 48 2 Two Sided Copper KS-16034 4 $456.32 Add to Order
.047" 36 48 2 One Side Copper KS-16067 4 $432.86 Add to Order
.047" 36 48 1 One Side Copper KS-16022 4 $374.96 Add to Order
.047" 36 48 1/2 One Side Copper KS-16116 5 $357.71 Add to Order
.047" 36 48 1 Two Sided Copper KS-16009 4 $413.14 Add to Order
.047" 36 48 1/2 Two Sided Copper KS-16020 4 $407.39 Add to Order
.047" 36 48 2 Two Sided Copper KS-16035 4 $506.75 Add to Order
.062" 36 48 2 One Side Copper KS-16058 3 $560.11 Add to Order
.062" 36 48 1 One Side Copper KS-15999 3 $483.23 Add to Order
.062" 36 48 1/2 One Side Copper KS-16117 4 $477.48 Add to Order
.062" 36 48 1 Two Sided Copper KS-16010 3 $532.91 Add to Order
.062" 36 48 1/2 Two Sided Copper KS-16021 3 $527.16 Add to Order
.062" 36 48 2 Two Sided Copper KS-16036 3 $626.52 Add to Order
.062" 24 36 1 One Side Copper KS-5249K 1 $207.63 Add to Order

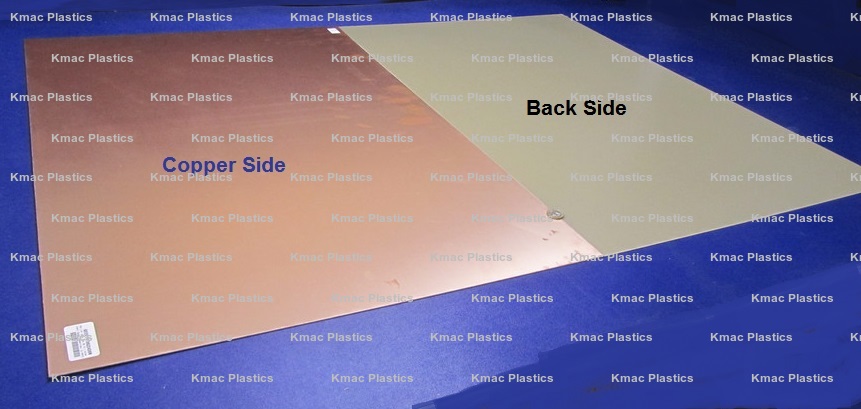

.062" 24 36 1 Two Side Copper KS-5247K 1 $237.75 Add to Order
.080" 36 48 1/2 Two Side Copper KS-5247KP 2 $523.02 Add to Order
.093" 36 48 2 One Side Copper KS-16050 2 $755.48 Add to Order
.093" 36 48 1 One Side Copper KS-16000 2 $705.18 Add to Order
.093" 36 48 1/2 One Side Copper KS-16118 3 $693.68 Add to Order
.093" 36 48 1 Two Sided Copper KS-16011 2 $749.11 Add to Order
.093" 36 48 1/2 Two Sided Copper KS-16025 3 $743.36 Add to Order
.093" 36 48 2 Two Sided Copper KS-16037 2 $842.72 Add to Order
.125" 36 48 2 One Side Copper KS-16060 2 $771.12 Add to Order
.125" 36 48 1 One Side Copper KS-16001 2 $894.93 Add to Order
.125" 36 48 1/2 One Side Copper KS-16131 2 $877.68 Add to Order
.125" 36 48 1 Two Sided Copper KS-16012 2 $935.41 Add to Order
.125" 36 48 1/2 Two Sided Copper KS-16032 2 $927.36 Add to Order
.125" 36 48 2 Two Sided Copper KS-16038 2 $1,026.72 Add to Order
.156" 36 48 2 One Side Copper KS-16061 2 $1,307.90 Add to Order
.156" 36 48 1 One Side Copper KS-16002 2 $1,198.53 Add to Order
.156" 36 48 1/2 One Side Copper KS-16119 2 $1,181.28 Add to Order
.156" 36 48 1 Two Sided Copper KS-16040 2 $1,236.71 Add to Order
.156" 36 48 1/2 Two Sided Copper KS-16023 3 $1,230.96 Add to Order
.156" 36 48 2 Two Sided Copper KS-16039 2 $1,330.32 Add to Order
.187" 36 48 2 One Side Copper KS-16062 2 $1,546.00 Add to Order
.187" 36 48 1 One Side Copper KS-16003 1 $1,416.92 Add to Order
.187" 36 48 1/2 One Side Copper KS-16122 2 $1,405.42 Add to Order
.187" 36 48 1 Two Sided Copper KS-16005 2 $1,460.85 Add to Order
.187" 36 48 1/2 Two Sided Copper KS-16015 1 $1,455.10 Add to Order
.187" 36 48 2 Two Sided Copper KS-16049 1 $1,554.46 Add to Order
.250" 36 48 2 One Side Copper KS-16063 1 $2,001.92 Add to Order
.250" 36 48 1 One Side Copper KS-16004 1 $1,851.73 Add to Order
.250" 36 48 1/2 One Side Copper KS-16124 2 $1,834.48 Add to Order
.250" 36 48 1 Two Sided Copper KS-16031 2 $1,889.91 Add to Order
.250" 36 48 1/2 Two Sided Copper KS-16026 1 $1,884.16 Add to Order
.250" 36 48 2 Two Sided Copper KS-16041 1 $1,983.52 Add to Order

Peel Strength:
1 Oz : 9 Lbs/in
2 Oz : 12 Lbs/in
Volume Resistivity Megaohn/CM C- 96/35/90 : 3.6 x 107
Water Absorbtion % D-24/23 : .06%
Dielectric KV D-48/50 : 43.0
Dielectric Strength 320 V/Mil at 1/8" Thickness
Dielectric Contstant D/24/23 : 4.37
Dissipation Factor : .014
Flexural Strength LW : 68,200 PSI
Flexural Strength CW : 64,400 PSI
Tensile Strength LW : 40,000 PSI
Tensile Strength CW : 35,000 PSI
Impact Strength 7.5 Ft Lbs/In Flatwise
Impact Strength 5.5 Ft Lbs/In Edgewise
Coefficiant of Linear Expansion : 10 x 10-6 In/In/oC
