(Micarta) (High Pressure Laminates) G10/FR4 Glass
Reinforced Epoxy - natural (yellowish to
light green) Technical
Data Sheet Chemical
Resistance Chart

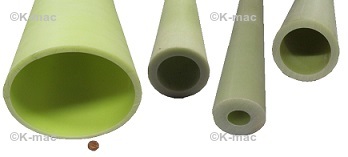

The most versatile all-around laminate and composite,
this grade is a continuous glass woven fabric base impregnated with an epoxy
resin binder. It has extremely high mechanical strength, good dielectric loss
properties, and good electric strength properties, both wet and dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202
|
Order G10/FR4 Tubes Online-Click Here
|
||||
| **Minimum's
and Lead Times Apply
3 Ft Minimums, unless Noted ** Denotes 6 Ft Minimum |
||||
|
Outside Diameter Inches |
Inside Diameter Inches |
Stock # |
Price/ft |
Purchase Online |
| 1.250 | 0.500 | KM-7308 | $48.68** | Buy Now |
| 1.312 | 0.562 | KM-7291 | $51.53** | Buy Now |
| 1.375 | 0.625 | KM-7292 | $54.40** | Buy Now |
| 1.437 | 0.687 | KM-7293 | $57.25** | Buy Now |
| 1.500 | 0.750 | KM-1131G | $59.40** | Buy Now |
| 1.562 | 0.812 | KM-7294 | $64.00** | Buy Now |
| 1.625 | 0.875 | KM-7295 | $66.00** | Buy Now |
| 1.687 | 0.937 | KM-7296 | $69.30** | Buy Now |
| 1.750 | 1.00 | KM-7289 | $72.60** | Buy Now |
| 1.812 | 1.062 | KM-7298 | $75.90** | Buy Now |
| 1.875 | 1.125 | KM-7288 | $79.18** | Buy Now |
| 1.937 | 1.187 | KM-7300 | $82.48** | Buy Now |
|
2.000 |
1.250 |
KM-1398 |
$85.78** |
Buy Now |
| 2.062 | 1.312 | KM-7301 | $89.08 | Buy Now |
| 2.125 | 1.375 | KM-7302 | $92.38 | Buy Now |
| 2.187 | 1.437 | KM-7303 | $95.68 | Buy Now |
|
2.250 |
1.500 |
KM-1402 |
$98.98 |
Buy Now |
| 2.312 | 1.562 | KM-7304 | $102.28 | Buy Now |
| 2.375 | 1.625 | KM-7305 | $105.58 | Buy Now |
| 2.437 | 1.687 | KM-7306 | $108.88 | Buy Now |
|
2.500 |
1.750 |
KM-1407 |
$109.20 |
Buy Now |
| 2.562 | 1.812 | KM-7297 | $115.48 | Buy Now |
| 2.625 | 1.875 | KM-7279 | $118.78 | Buy Now |
| 2.687 | 1.937 | KM-7214 | $122.08 | Buy Now |
|
2.750 |
2.000 |
KM-1412 |
$125.38 |
Buy Now |
| 2.812 | 2.062 | KM-7271 | $128.68 | Buy Now |
| 2.875 | 2.125 | KM-7272 | $131.98 | Buy Now |
| 2.937 | 2.187 | KM-7273 | $135.28 | Buy Now |
|
3.000 |
2.250 |
KM-1417 |
$138.58 |
Buy Now |
| 3.062 | 2.312 | KM-7274 | $141.88 | Buy Now |
| 3.125 | 2.375 | KM-7275 | $145.18 | Buy Now |
| 3.187 | 2.437 | KM-7276 | $148.48 | Buy Now |
|
3.250 |
2.500 |
KM-1422 |
$151.78 |
Buy Now |
| 3.312 | 2.562 | KM-7278 | $155.08 | Buy Now |
| 3.375 | 2.625 | KM-7309 | $158.38 | Buy Now |
| 3.437 | 2.687 | KM-7280 | $161.68 | Buy Now |
|
3.500 |
2.750 |
KM-1427 |
$164.98 |
Buy Now |
| 3.562 | 2.812 | KM-7282 | $168.28 | Buy Now |
| 3.625 | 2.875 | KM-7283 | $171.58 | Buy Now |
| 3.687 | 2.937 | KM-7284 | $174.88 | Buy Now |
|
3.750 |
3.000 |
KM-1432 |
$178.18 |
Buy Now |
| 3.812 | 3.062 | KM-7286 | $181.48 | Buy Now |
| 3.875 | 3.125 | KM-7287 | $184.78 | Buy Now |
| 3.937 | 3.187 | KM-7277 | $188.08 | Buy Now |
|
4.000 |
3.250 |
KM-1437 |
$190.91 |
Buy Now |
| 4.062 | 3.312 | KM-7339 | $192.02 | Buy Now |
| 4.125 | 3.375 | KM-7307 | $193.78 | Buy Now |
| 4.187 | 3.437 | KM-7331 | $197.00 | Buy Now |
|
4.250 |
3.500 |
KM-1442 |
$200.23 |
Buy Now |
| 4.312 | 3.562 | KM-7332 | $203.48 | Buy Now |
| 4.375 | 3.625 | KM-7333 | $206.70 | Buy Now |
| 4.437 | 3.687 | KM-7334 | $209.92 | Buy Now |
|
4.500 |
3.750 |
KM-1447 |
$211.51 |
Buy Now |
| 4.562 | 3.812 | KM-7336 | $211.18 | Buy Now |
| 4.625 | 3.875 | KM-7335 | $212.21 | Buy Now |
| 4.687 | 3.937 | KM-7329 | $214.28 | Buy Now |
| 4.750 | 4.000 | KM-7338 | $217.38 | Buy Now |
| 4.812 | 4.062 | KM-7328 | $220.48 | Buy Now |
| 4.875 | 4.125 | KM-7340 | $223.58 | Buy Now |
| 4.937 | 4.187 | KM-7341 | $226.70 | Buy Now |
| 5.00 | 4.25 | KM-7343 | $229.80 | Buy Now |
| 5.062 | 4.312 | KM-7501 | $232.90 | Buy Now |
| 5.125 | 4.375 | KM-7210 | $236.00 | Buy Now |
| 5.187 | 4.437 | KM-7211 | $239.13 | Buy Now |
| 5.250 | 4.500 | KM-7212 | $242.23 | Buy Now |
| 5.312 | 4.562 | KM-7213 | $245.33 | Buy Now |
| 5.375 | 4.25 | KM-7337 | $248.43 | Buy Now |
| 5.437 | 4.687 | KM-7321 | $250.53 | Buy Now |
| 5.500 | 4.750 | KM-7254 | $254.65 | Buy Now |
| 5.562 | 4.812 | KM-7314 | $257.75 | Buy Now |
| 5.625 | 4.875 | KM-7315 | $262.50 | Buy Now |
| 5.687 | 4.937 | KM-7316 | $263.95 | Buy Now |
| 5.750 | 5.00 | KM-7317 | $267.05 | Buy Now |
| 5.812 | 5.062 | KM-7312 | $270.18 | Buy Now |
| 5.875 | 5.125 | KM-7320 | $273.28 | Buy Now |
| 5.937 | 5.187 | KM-7270 | $276.38 | Buy Now |
| 6.00 | 5.25 | KM-7322 | $279.48 | Buy Now |
| 6.062 | 5.312 | KM-7323 | $282.60 | Buy Now |
| 6.125 | 5.375 | KM-7324 | $285.70 | Buy Now |
| 6.187 | 5.437 | KM-7325 | $288.80 | Buy Now |
| 6.250 | 5.500 | KM-7326 | $291.90 | Buy Now |
| 6.312 | 5.562 | KM-7327 | $295.00 | Buy Now |
| 6.375 | 5.25 | KM-7318 | $298.13 | Buy Now |
| 6.437 | 5.687 | KM-7262 | $301.23 | Buy Now |
| 6.500 | 5.750 | KM-7371 | $304.33 | Buy Now |
| 6.562 | 5.812 | KM-7256 | $307.43 | Buy Now |
| 6.625 | 5.875 | KM-7257 | $310.55 | Buy Now |
| 6.687 | 5.937 | KM-7258 | $313.65 | Buy Now |
| 6.750 | 6.00 | KM-7259 | $316.75 | Buy Now |
| 6.812 | 6.062 | KM-7313 | $319.85 | Buy Now |
| 6.875 | 6.125 | KM-7261 | $322.95 | Buy Now |
| 6.937 | 6.187 | KM-7342 | $326.08 | Buy Now |
| 7.00 | 6.25 | KM-7263 | $329.18 | Buy Now |
| 7.062 | 6.312 | KM-7264 | $332.28 | Buy Now |
| 7.125 | 6.375 | KM-7265 | $335.38 | Buy Now |
| 7.187 | 6.437 | KM-7266 | $338.48 | Buy Now |
| 7.250 | 6.500 | KM-7267 | $341.60 | Buy Now |
| 7.312 | 6.562 | KM-7268 | $344.70 | Buy Now |
| 7.375 | 6.25 | KM-7260 | $347.80 | Buy Now |
| 7.437 | 6.687 | KM-7364 | $350.90 | Buy Now |
| 7.500 | 6.750 | KM-7357 | $354.03 | Buy Now |
| 7.562 | 6.812 | KM-7358 | $357.13 | Buy Now |
| 7.625 | 6.875 | KM-7359 | $360.23 | Buy Now |
| 7.687 | 6.937 | KM-7360 | $363.33 | Buy Now |
| 7.750 | 7.00 | KM-7361 | $366.43 | Buy Now |
| 7.812 | 7.062 | KM-7330 | $369.55 | Buy Now |
| 7.875 | 7.125 | KM-7363 | $372.65 | Buy Now |
| 7.937 | 7.187 | KM-7354 | $375.75 | Buy Now |
| 8.00 | 7.25 | KM-7365 | $378.85 | Buy Now |
| 8.062 | 7.312 | KM-7366 | $381.95 | Buy Now |
| 8.125 | 7.375 | KM-7367 | $385.08 | Buy Now |
| 8.187 | 7.437 | KM-7368 | $388.18 | Buy Now |
| 8.250 | 7.500 | KM-7369 | $391.28 | Buy Now |
| 8.312 | 7.562 | KM-7370 | $394.38 | Buy Now |
| 8.375 | 7.25 | KM-7362 | $397.50 | Buy Now |
| 8.437 | 7.687 | KM-7348 | $400.60 | Buy Now |
| 8.500 | 7.750 | KM-7253 | $403.70 | Buy Now |
| 8.562 | 7.812 | KM-7215 | $406.80 | Buy Now |
| 8.625 | 7.875 | KM-7216 | $409.90 | Buy Now |
| 8.687 | 7.937 | KM-7217 | $413.03 | Buy Now |
| 8.750 | 8.00 | KM-7344 | $416.13 | Buy Now |
| 8.875 | 8.125 | KM-7345 | $422.33 | Buy Now |
| 8.937 | 8.187 | KM-7356 | $425.43 | Buy Now |
| 9.00 | 8.25 | KM-7347 | $428.55 | Buy Now |
| 9.062 | 8.312 | KM-7355 | $431.65 | Buy Now |
| 9.125 | 8.375 | KM-7349 | $434.75 | Buy Now |
| 9.187 | 8.437 | KM-7350 | $437.85 | Buy Now |
| 9.250 | 8.500 | KM-7351 | $440.98 | Buy Now |
| 9.312 | 8.562 | KM-7352 | $444.08 | Buy Now |
| 9.375 | 8.625 | KM-7353 | $447.18 | Buy Now |
| 9.500 | 8.750 | KM-7346 | $453.38 | Buy Now |
| 9.562 | 8.812 | KM-7204 | $456.50 | Buy Now |
| 9.625 | 8.875 | KM-7255 | $459.60 | Buy Now |
| 9.687 | 8.937 | KM-7198 | $462.70 | Buy Now |
| 9.750 | 9.00 | KM-7199 | $465.80 | Buy Now |
| 9.812 | 9.062 | KM-7200 | $468.90 | Buy Now |
| 9.875 | 9.125 | KM-7201 | $472.03 | Buy Now |
| 9.937 | 9.187 | KM-7196 | $475.13 | Buy Now |
| 10.00 | 9.25 | KM-7203 | $478.23 | Buy Now |
| 10.062 | 9.312 | KM-7195 | $481.33 | Buy Now |
| 10.125 | 9.375 | KM-7205 | $484.45 | Buy Now |
| 10.187 | 9.437 | KM-7206 | $487.55 | |
