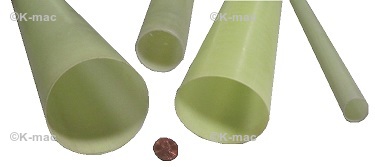

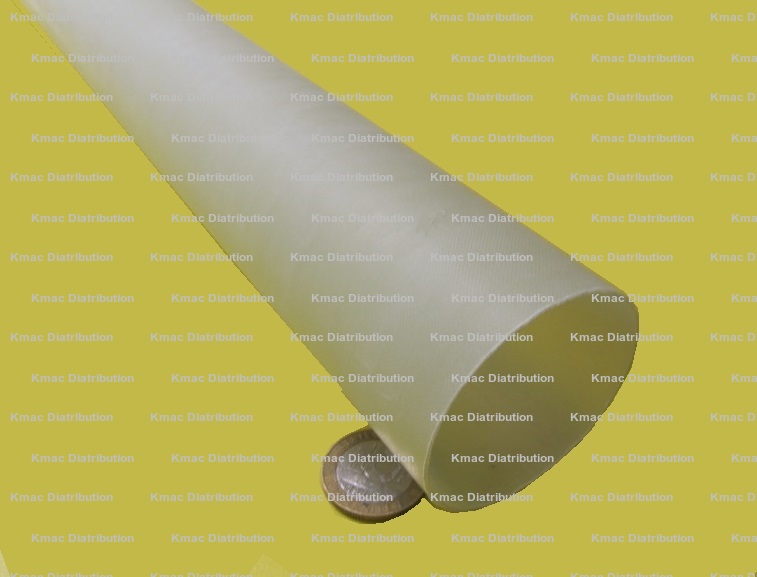

NEMA G10 FR4 Tubes Glass Reinforced Epoxy - .031" Wall
(Micarta) (High Pressure Laminates) NEMA G10 FR4 Glass Reinforced Epoxy - natural (yellowish to light green)
Technical
Data Sheet
Chemical Resistance Chart
The most versatile all-around laminate and composite, this grade
is a continuous glass woven fabric base impregnated with an epoxy resin binder.
It has extremely high mechanical strength, good dielectric loss properties, and
good electric strength properties, both wet and dry.
NEMA G-10 MIL-I-24768/2 GEE, IPC 4101/20, IEC 60893-3 Type 2 EP GC 201
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2
EP GC 202
Tubes are manufactured in random lengths between 30 and 36 inches.
The pricing and minimums are based on 36 in.
Tubes can also be produced in 42" to 48" random lengths for the same price.
Measured lengths of 36"±1" and 48"±1" are also available - call for pricing.

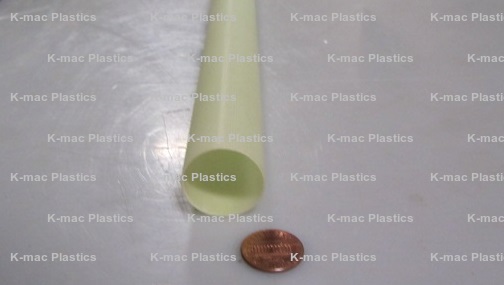

| NEMA G10 FR4 Tubes
1/32" Tubes Wall Thickness **Minimum's Apply, Non Stocked Item Tolerances (Note: Pricing for Over 4.00" Diameter Wound Only) |
|||||
| Part # | Outside Diameter (in.) | Inside Diameter (in.) | Price Per Foot | Minimum Order | Order Online |
|---|---|---|---|---|---|

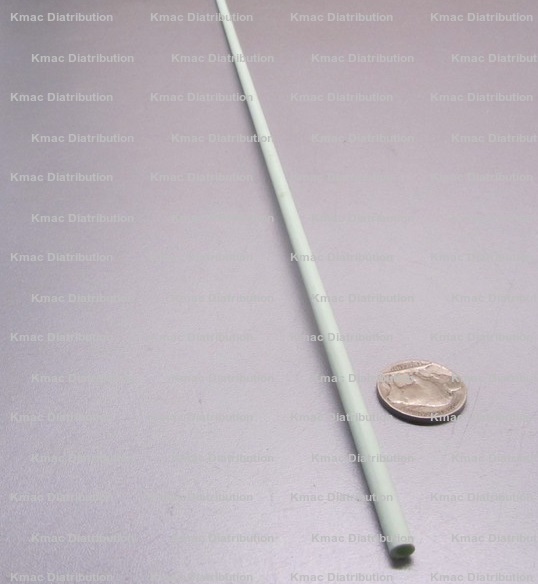

| KM-1331 | 0.188 | 0.125 | $23.15 | 48 Feet | Add to Order |

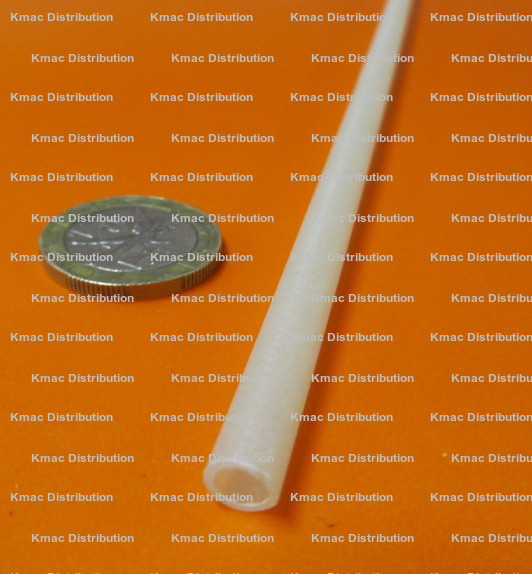

| KM-1333 | 0.250 | 0.188 | $24.13 | 45 Feet | Add to Order |

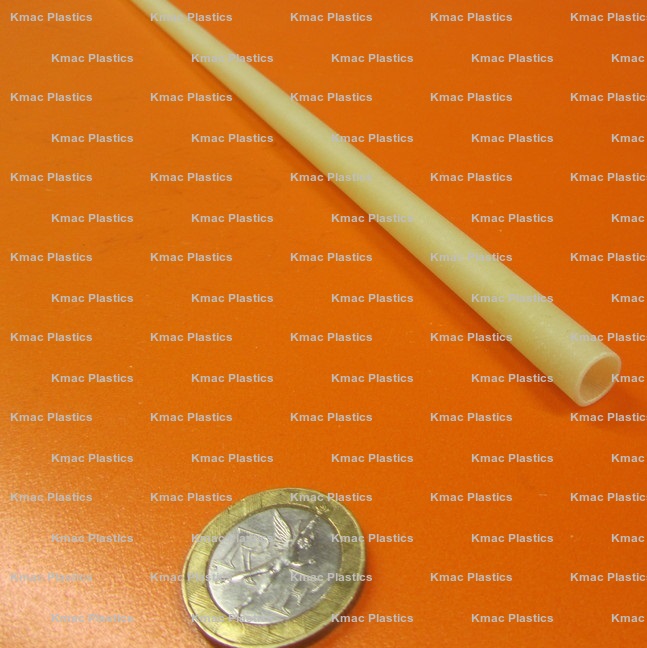

| KM-3115V | 0.281 | 0.218 | $24.60 | 45 Feet | Add to Order |

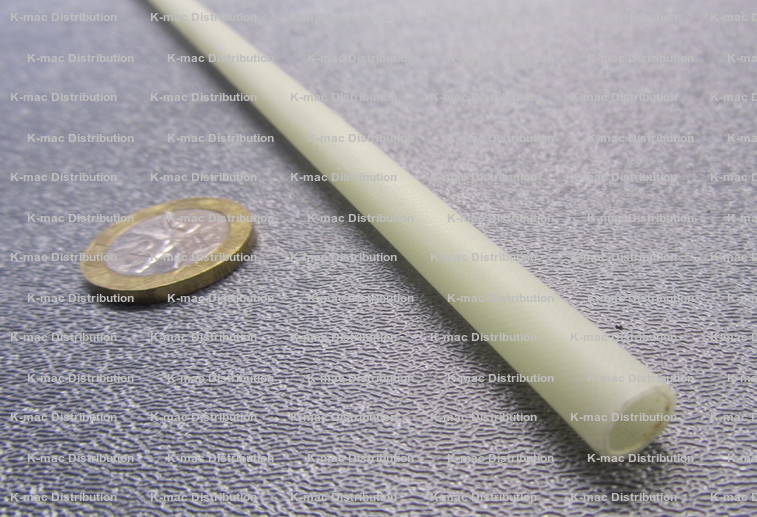

| KM-1337 | 0.312 | 0.250 | $25.10 | 45 Feet | Add to Order |

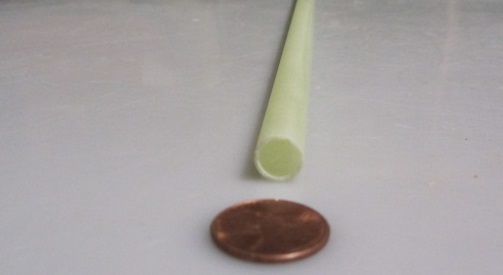

| KM-1341 | 0.375 | 0.312 | $26.08 | 42 Feet | Add to Order |

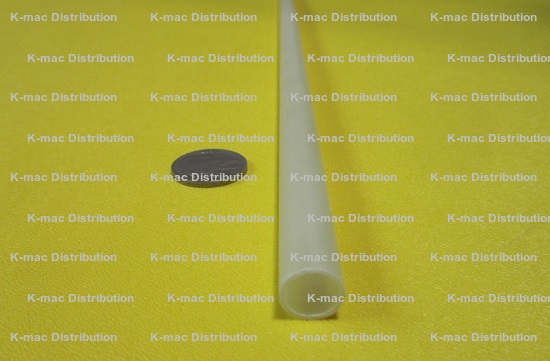

| KM-1345 | 0.437 | 0.375 | $27.05 | 42 Feet | Add to Order |

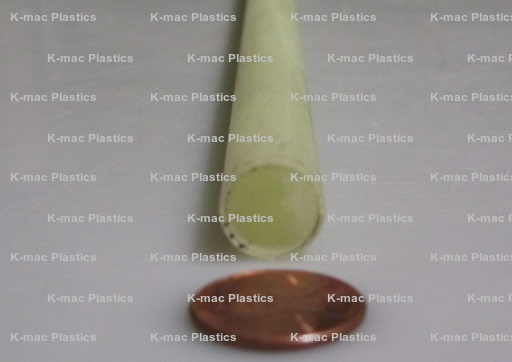

| KM-1349 | 0.500 | 0.437 | $28.00 | 39 Feet | Add to Order |

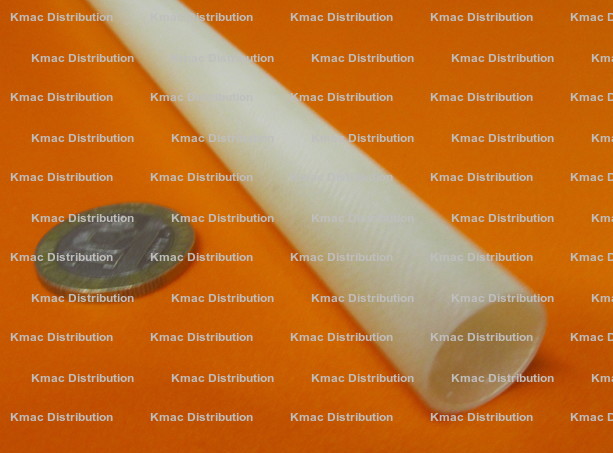

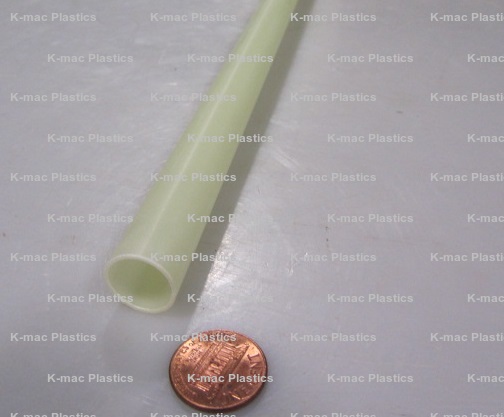

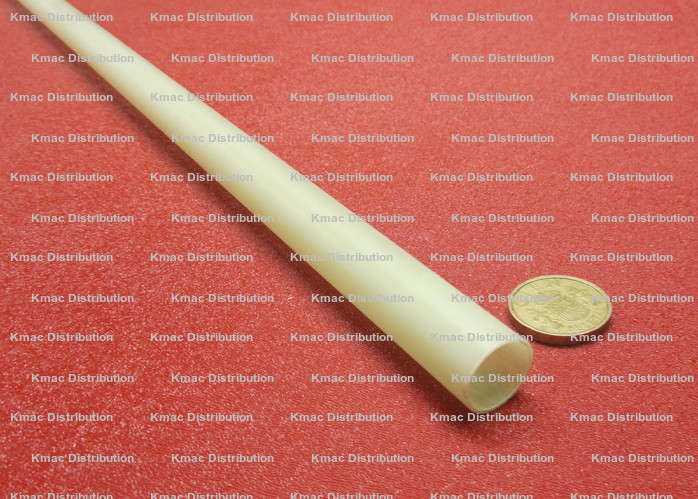

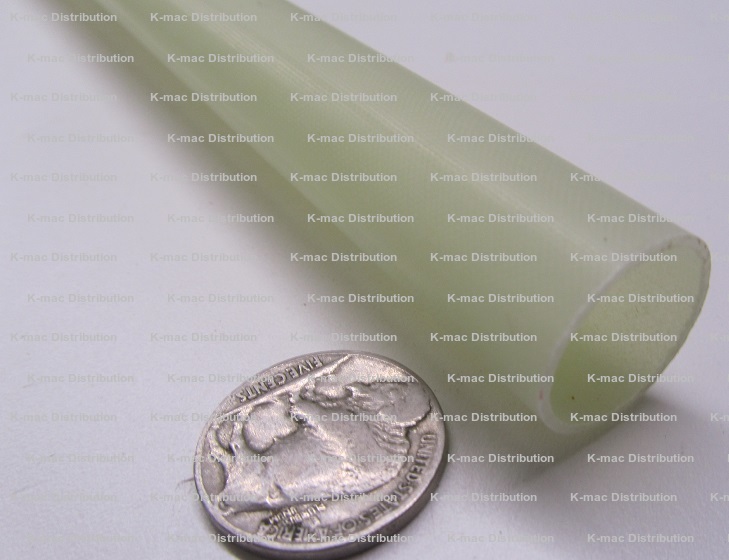

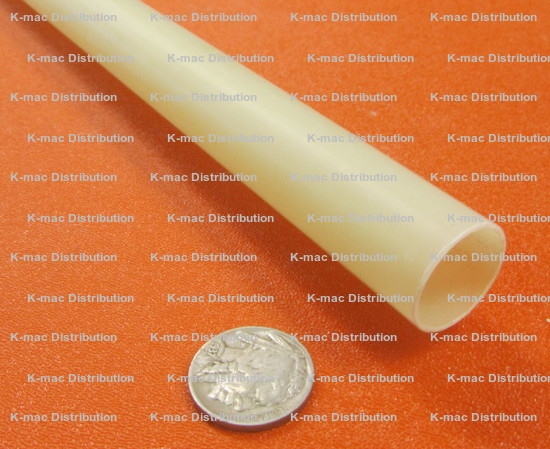

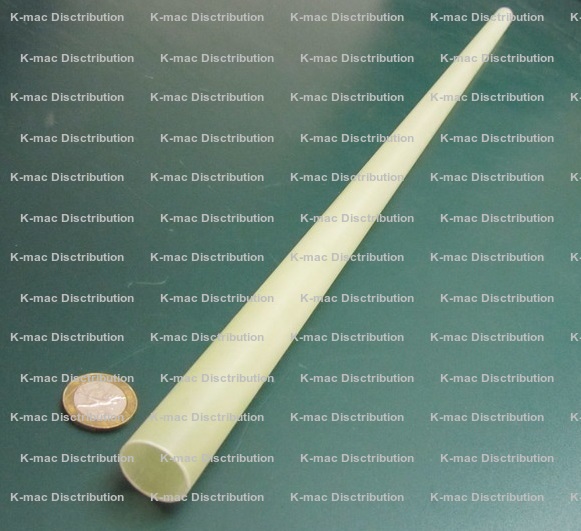

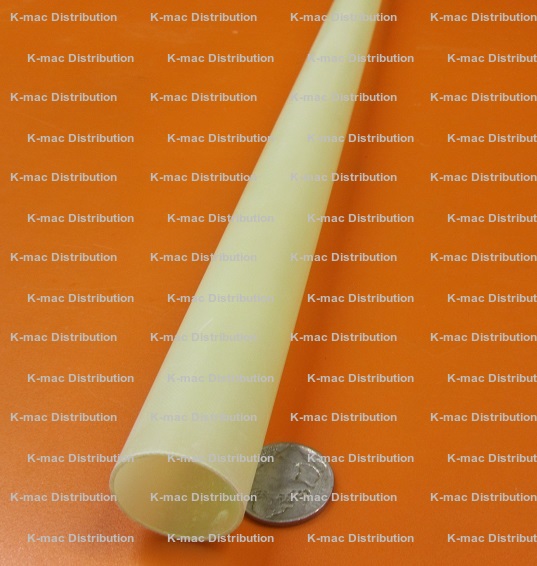

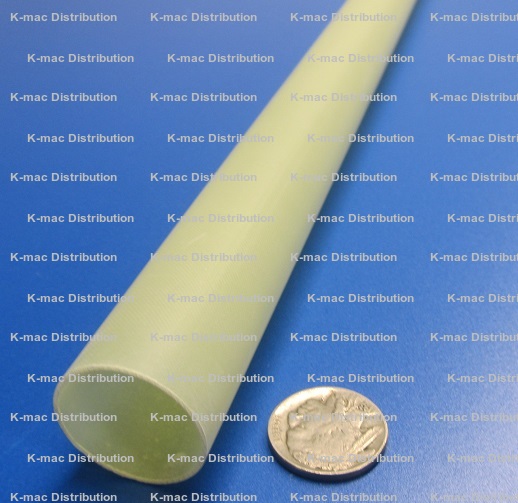

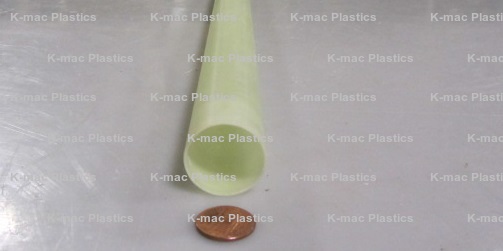

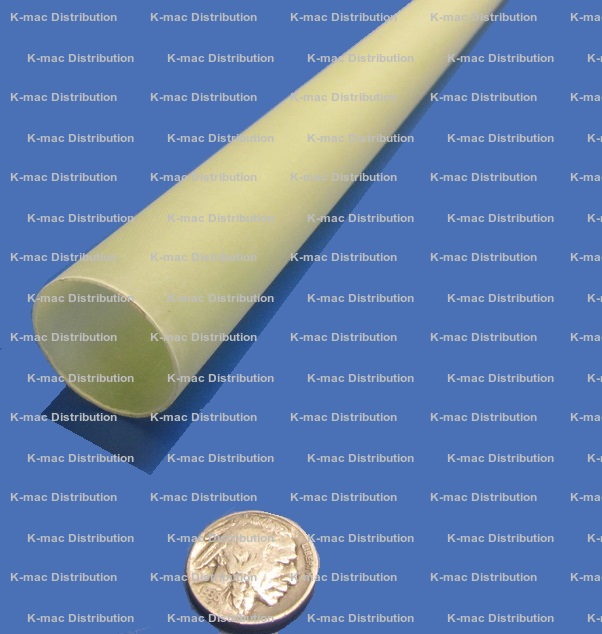

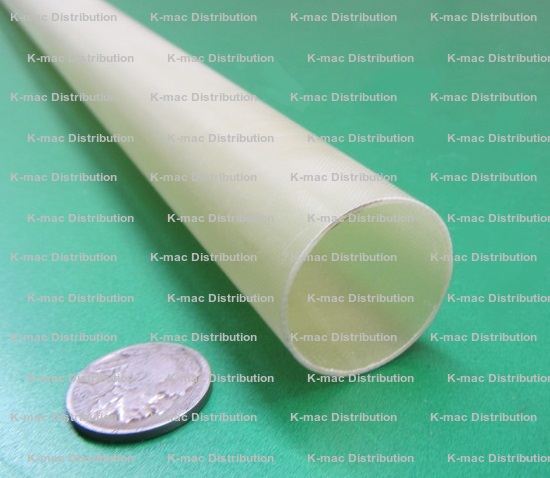

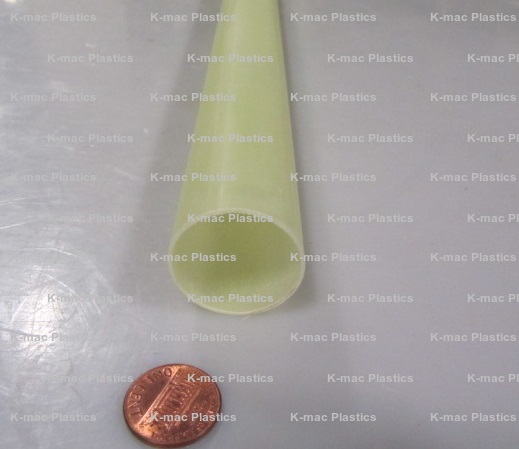

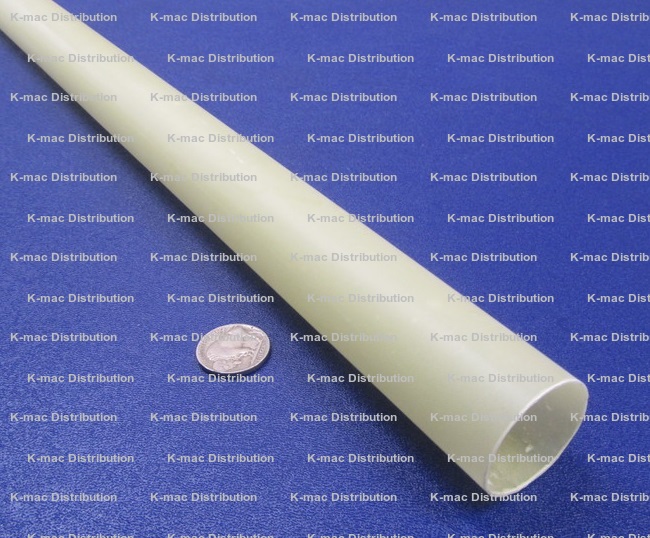

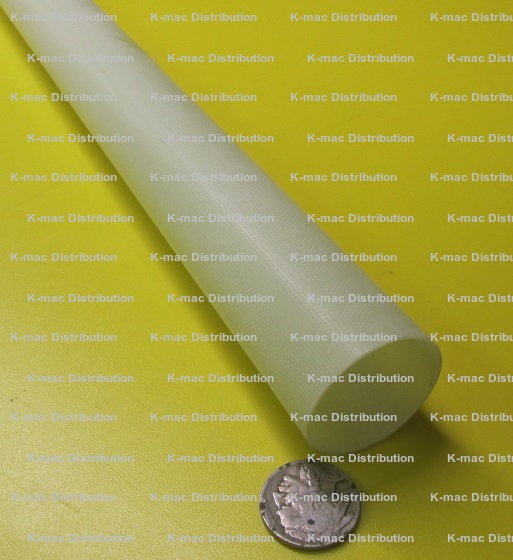

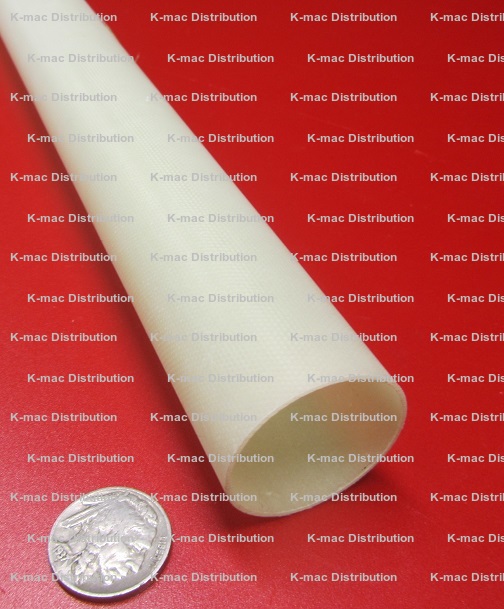

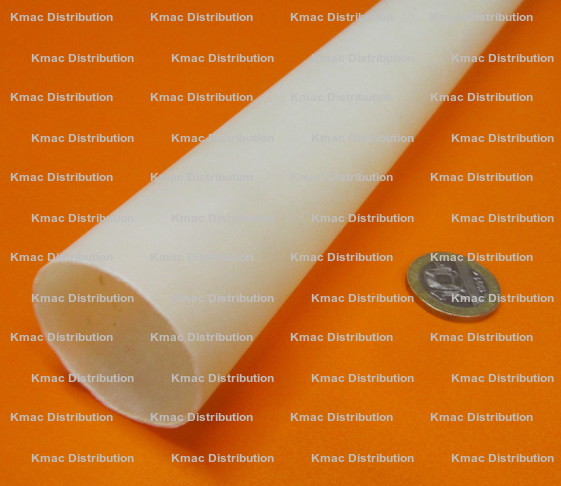

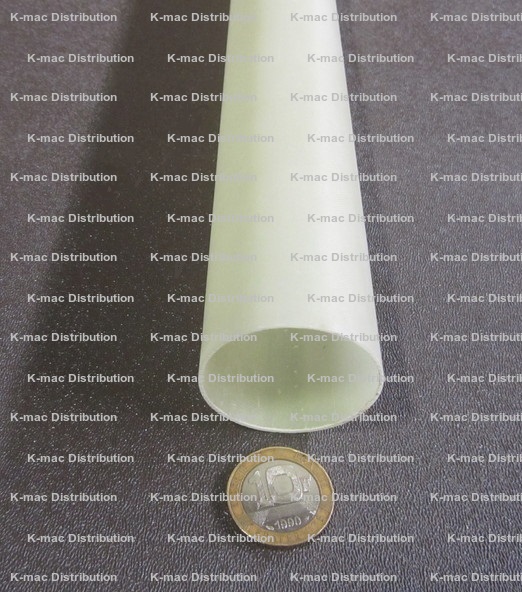

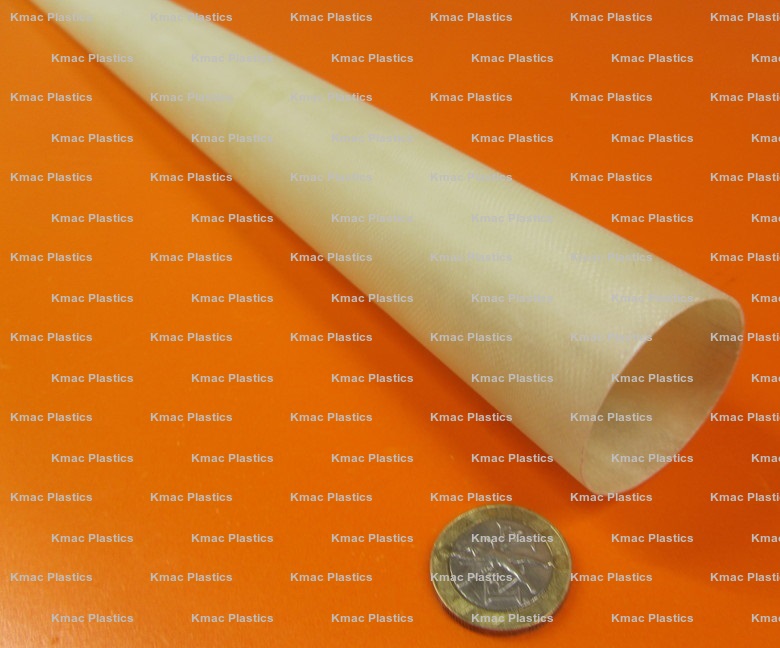

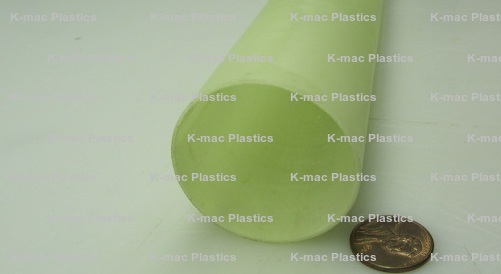

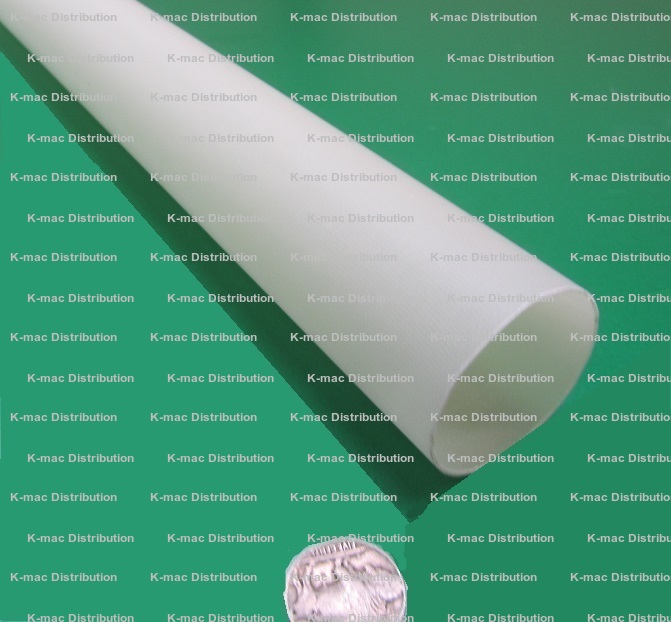

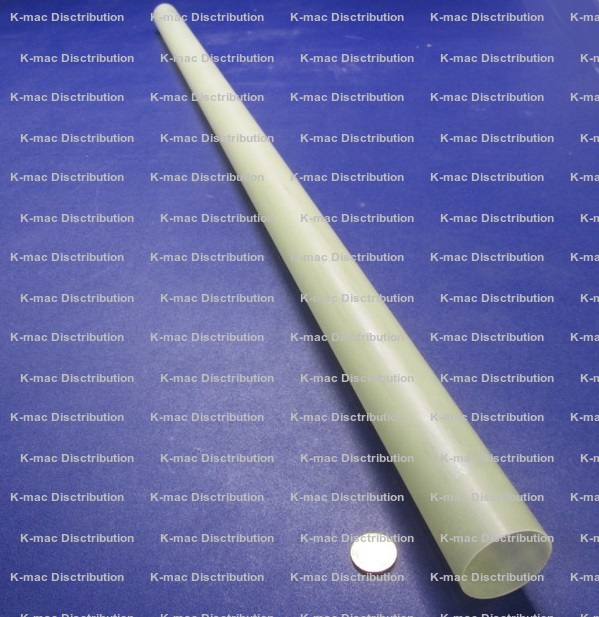

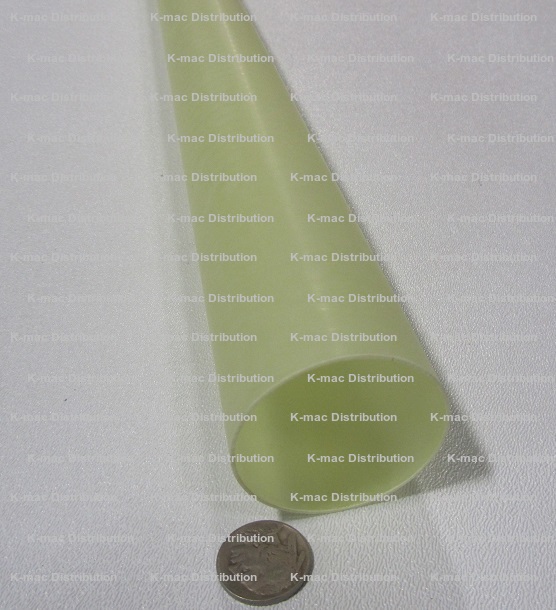

| KM-1353 | 0.562 | 0.500 | $28.98 | 39 Feet | Add to Order |
| KM-1359 | 0.625 | 0.563 | $29.95 | 36 Feet | Add to Order |
| KM-1364 | 0.687 | 0.625 | $30.92 | 36 Feet | Add to Order |
| KM-1370 | 0.750 | 0.688 | $31.90 | 36 Feet | Add to Order |
| KM-1373 | 0.812 | 0.750 | $32.88 | 33 Feet | Add to Order |
| KM-1286V | 0.875 | 0.812 | $33.85 | 33 Feet | Add to Order |
| KM-1378 | 0.937 | 0.875 | $34.83 | 33 Feet | Add to Order |
| KM-5828 | 1.000 | 0.937 | $35.80 | 30 Feet | Add to Order |
| KM-5835 | 1.031 | 0.969 | $36.28 | 30 Feet | Add to Order |
| KM-5198 | 1.062 | 1.000 | $37.80 | 30 Feet | Add to Order |
| KM-5837 | 1.094 | 1.031 | $38.30 | 30 Feet | Add to Order |
| KM-5838 | 1.125 | 1.062 | $38.80 | 27 Feet | Add to Order |
| KM-5839 | 1.156 | 1.094 | $39.33 | 27 Feet | Add to Order |
| KM-5840 | 1.187 | 1.125 | $39.80 | 27 Feet | Add to Order |
| KM-5841 | 1.250 | 1.187 | $40.80 | 27 Feet | Add to Order |
| KM-5842 | 1.312 | 1.250 | $41.80 | 27 Feet | Add to Order |
| KM-5843 | 1.375 | 1.312 | $42.80 | 27 Feet | Add to Order |
| KM-5844 | 1.437 | 1.375 | $43.83 | 24 Feet | Add to Order |
| KM-5845 | 1.500 | 1.437 | $44.80 | 24 Feet | Add to Order |
| KM-5846 | 1.562 | 1.500 | $45.82 | 24 Feet | Add to Order |
| KM-5847 | 1.625 | 1.562 | $46.80 | 24 Feet | Add to Order |
| KM-5848 | 1.687 | 1.625 | $47.82 | 24 Feet | Add to Order |
| KM-5829 | 1.750 | 1.687 | $48.80 | 21 Feet | Add to Order |
| KM-5849 | 1.812 | 1.750 | $49.83 | 21 Feet | Add to Order |

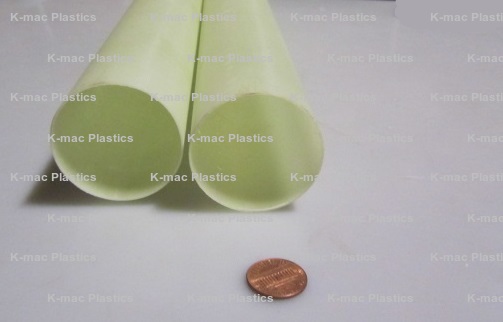

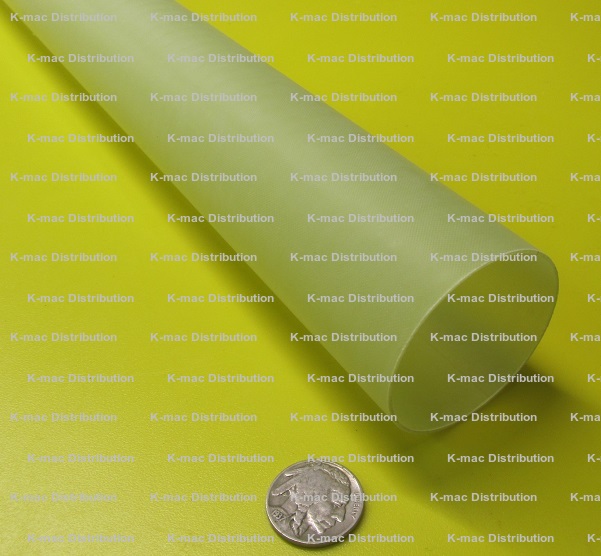

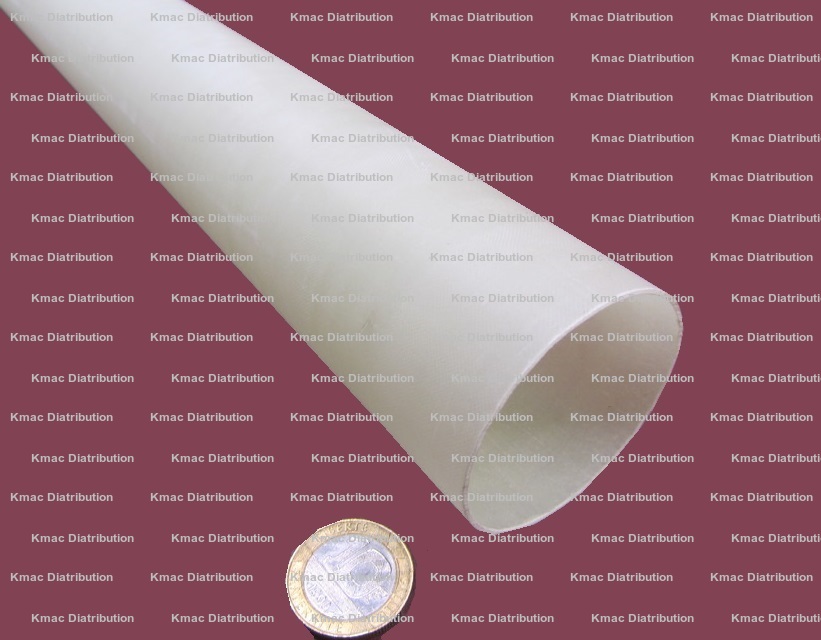

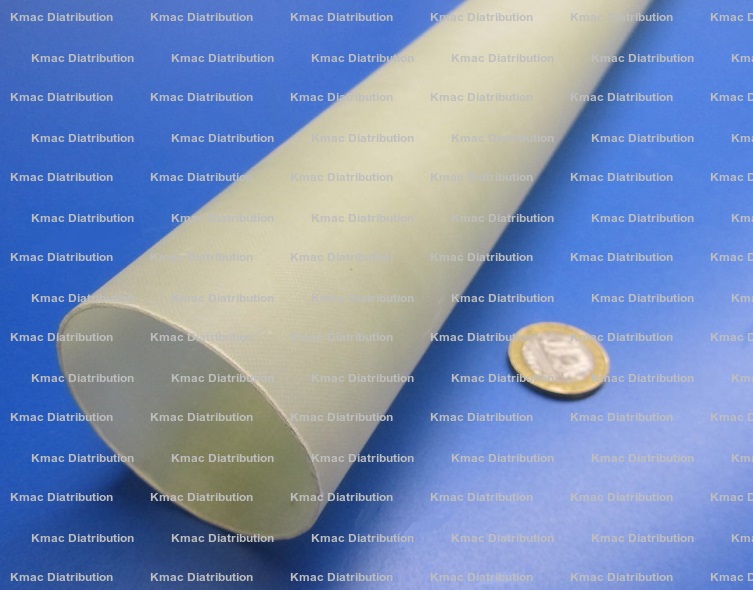

| KM-5850 | 1.937 | 1.875 | $51.83 | 21 Feet | Add to Order |
| KM-5851 | 2.031 | 1.969 | $53.32 | 21 Feet | Add to Order |
| KM-5852 | 2.094 | 2.031 | $54.33 | 21 Feet | Add to Order |
| KM-5853 | 2.125 | 2.062 | $54.80 | 21 Feet | Add to Order |
| KM-5854 | 2.156 | 2.094 | $55.32 | 21 Feet | Add to Order |

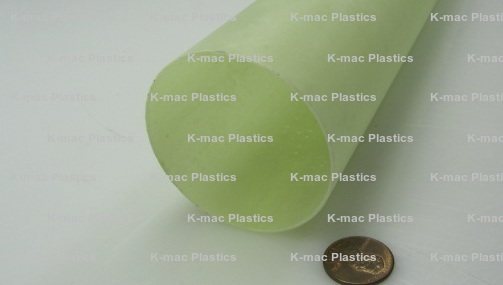

| KM-5855 | 2.187 | 2.125 | $55.82 | 21 Feet | Add to Order |

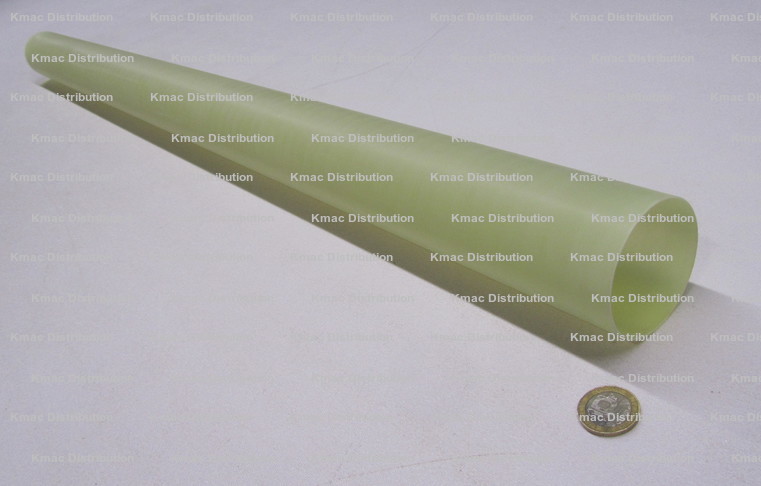

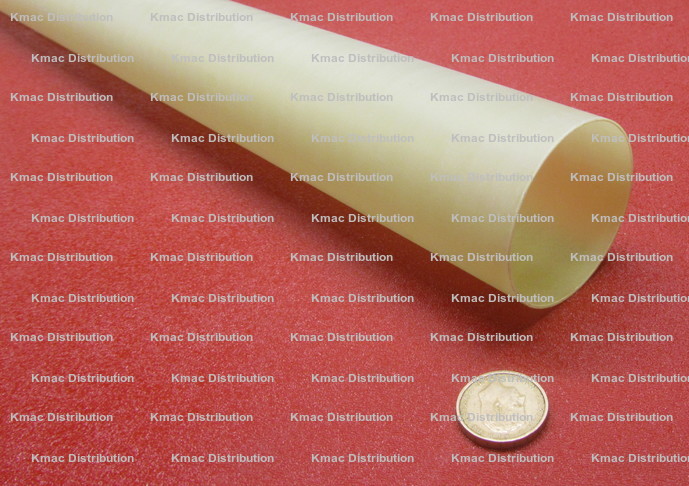

| KM-5856 | 2.250 | 2.187 | $56.80 | 18 Feet | Add to Order |
| KM-5857 | 2.312 | 2.250 | $57.82 | 18 Feet | Add to Order |

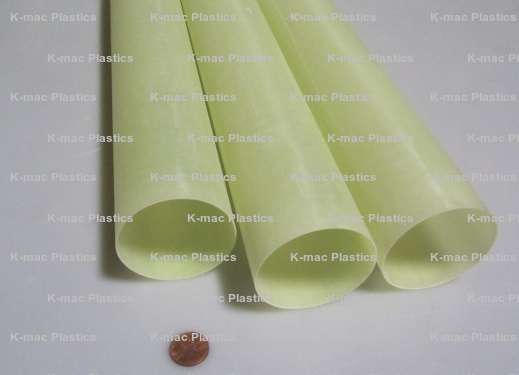

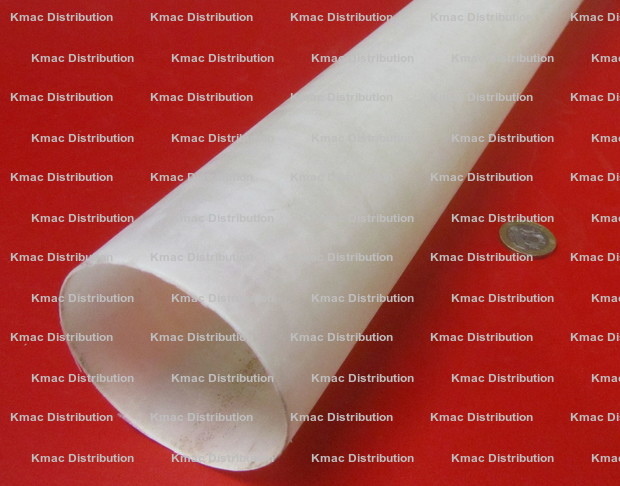

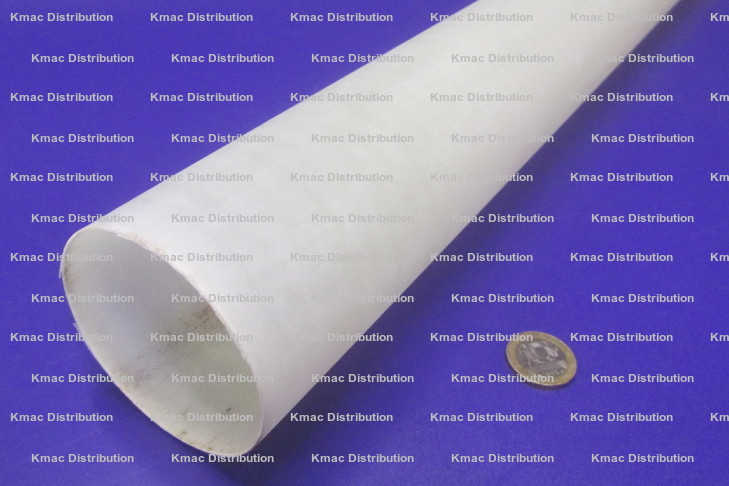

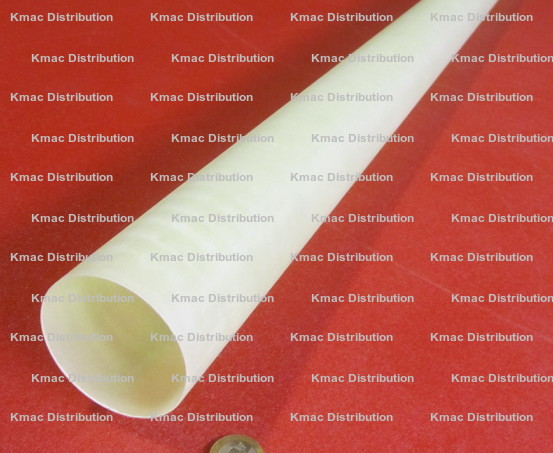

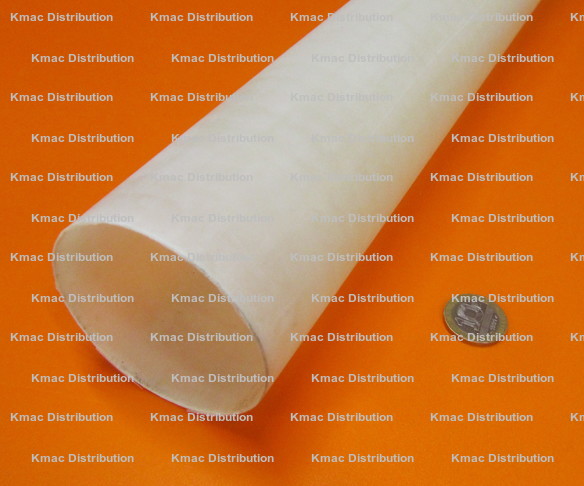

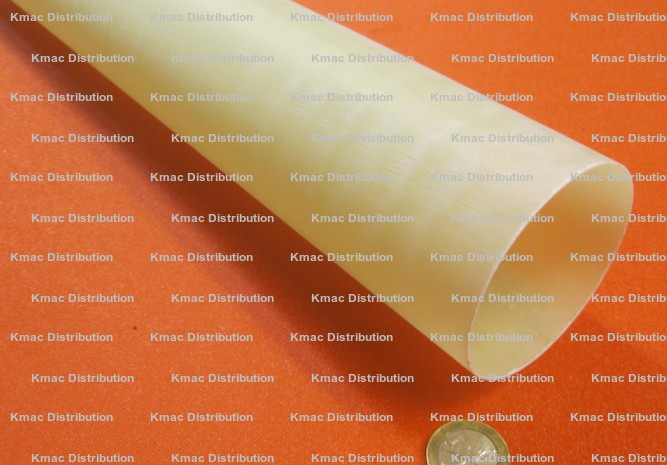

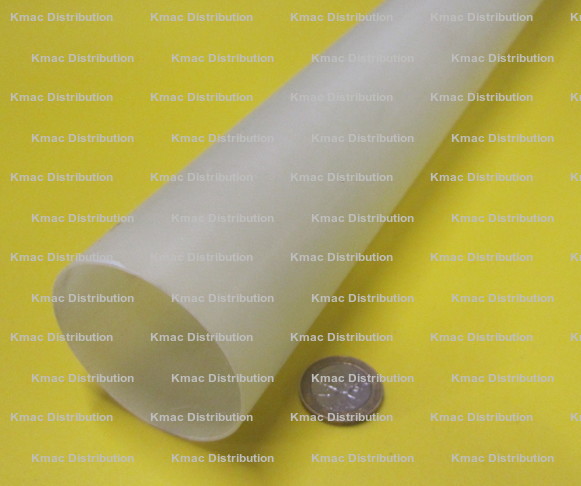

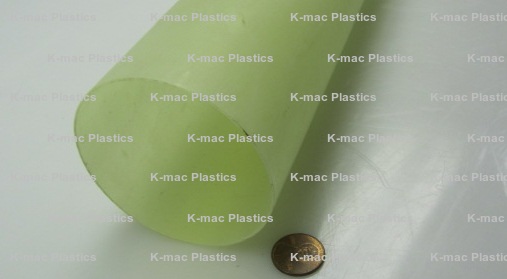

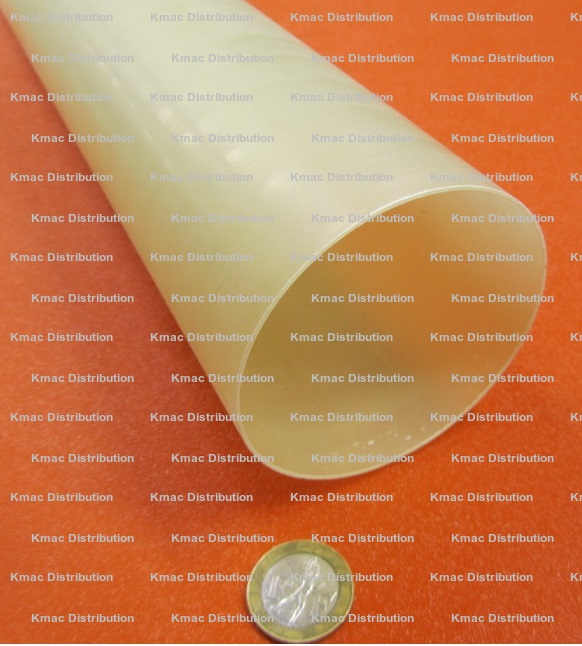

| KM-4624 | 2.375 | 2.312 | $58.83 | 18 Feet | Add to Order |
| KM-5858 | 2.437 | 2.375 | $59.83 | 18 Feet | Add to Order |
| KM-5859 | 2.500 | 2.437 | $60.82 | 18 Feet | Add to Order |
| KM-5860 | 2.562 | 2.500 | $61.83 | 18 Feet | Add to Order |
| KM-5861 | 2.625 | 2.562 | $62.82 | 18 Feet | Add to Order |
| KM-5862 | 2.687 | 2.625 | $63.83 | 18 Feet | Add to Order |
| KM-5863 | 2.750 | 2.687 | $64.83 | 18 Feet | Add to Order |
| KM-5864 | 2.812 | 2.750 | $65.82 | 18 Feet | Add to Order |
| KM-5865 | 2.937 | 2.875 | $67.83 | 15 Feet | Add to Order |
| .031" Walls are not available in OD's = to or larger than 3.00" | |||||
| Rev. 04-23, 08-22, 04-22, 02-22 | |||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
