Canvas Nema C Fabric Reinforced Phenolic Canvas Tubes - .031" Tubes Wall Thickness
Canvas
Nema C Fabric Reinforced Phenolic - natural
(light tan to brown)
Technical Data Sheet
This grade is composed of a continuous woven cloth
impregnated with a phenolic resin binder. This grade contains a medium weave
canvas and is known primarily for it's mechanical properties. This grade is not
recommended for primary insulation.
NEMA grades C Canvas Cotton-Cloth
Reinforced Phenolic -- natural color is typically light tan to brown. C grades
are composed of a continuous woven cloth impregnated with a phenolic resin
binder. These grades contain a medium weave canvas and are known primarily for
their mechanical properties. These grades are not recommended for primary
electrical insulation. (Grade C certifies to Mil-I-13768/16 FBM, IEC 60893-3
Type 4, PF CC 201)
(Grade CE certifies to Mil-I-24768/14 FBG, IEC 60893-3 Type 4, PF CC 203)
Canvas Tubes Canvas Sheets Canvas Bars
Tubes are manufactured in random lengths between 30 and 36 inches.
The pricing and minimums are based on 36 in.
Tubes can also be produced in 42" to 48" random lengths for the same price.
Measured lengths of 36"±1" and 48"±1" are also available - call for pricing.

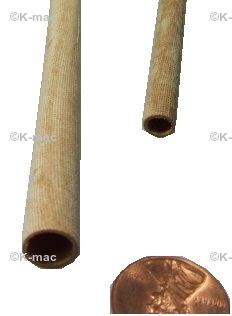

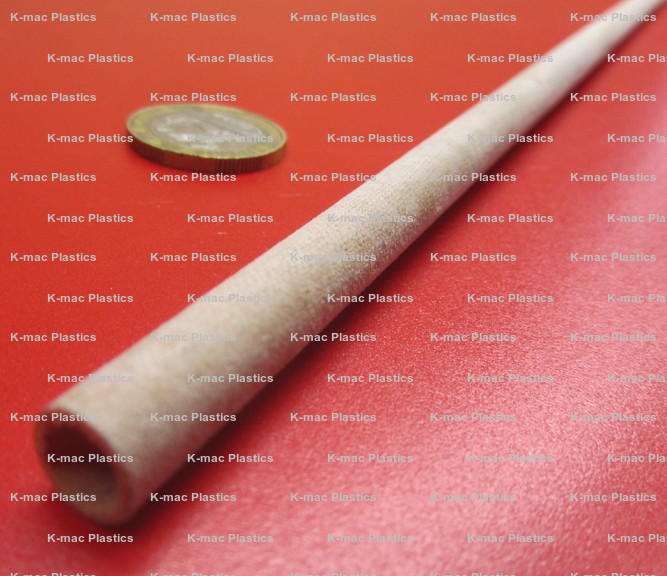

| .031" Tubes Wall Thickness - Nema C Canvas Phenolic Laminate Tubes | ||||||
| Part # | OD (in.) | ID (in.) | Wall (in.) | Minimum Order (ft.) | Price Per Foot | Order Online |
|---|---|---|---|---|---|---|
| KM-2000 | .250 | .187 | 0.031 | 9 Feet | $6.68 | Add to Order |
| KM-2004 | .313 | .250 | 0.031 | 9 Feet | $7.52 | Add to Order |
| KM-2008 | .375 | .312 | 0.031 | 9 Feet | $12.95 | Add to Order |
| KM-2012 | .438 | .375 | 0.031 | 123 Feet | $8.60 | Add to Order |
| KM-2020 | .563 | .500 | 0.031 | 117 Feet | $13.35 | Add to Order |
| KM-2026 | .625 | .562 | 0.031 | 114 Feet | $13.80 | Add to Order |
| KM-2031 | .688 | .625 | 0.031 | 108 Feet | $14.25 | Add to Order |
| KM-2037 | .750 | .687 | 0.031 | 105 Feet | $14.70 | Add to Order |
| KM-2040 | .813 | .750 | 0.031 | 102 Feet | $15.58 | Add to Order |
| KM-2051 | 1.063 | 1.00 | 0.031 | 99 Feet | $17.43 | Add to Order |
| KM-5058 | 1.562 | 1.500 | 0.031 | 81 Feet | $21.10 | Add to Order |
| Rev. 03-24, 05-23, 04-23, 08-22 | ||||||
| Phenolic Tube Tolerances | ||||
| ↓ Inside Diameter ↓ | ||||
| Outside Diameter | Turned OD Tolerance |
Steel Mandrel |
Built-up Mandrel |
|
| 0.125" to 0.749" | ±.005" | ±.003" | - | |
| 0.750" to 1.999" | ±.005" | ±.004" | - | |
| 2.000" to 4.000" | ±.008" | ±.006" | - | |
| 4.001" - 12.000" | ±.025" ** | ±.010" | - | |
| 12.001" - 18.000" | ±.030" ** | ±.030" | ±.060" | |
| 18.001" - 24.000" | ±.035" ** | ±.040" | ±.075" | |
| 24.001" - 48.000" | ±.040" ** | ±.060" | ±.090" | |
|
** Tubes over 8.000" OD are supplied as wound, which
** Tubes turned to the following OD tolerance
|
||||
