Canvas NEMA C Fabric Reinforced Phenolic Canvas Tubes - .125" Tubes Wall Thickness

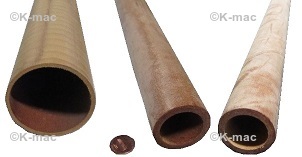

Canvas Phenolic Tubes 1/8" Wall Thickness

Canvas NEMA C Fabric Reinforced Phenolic - natural (light tan to brown) Technical Data Sheet
This grade is composed of a continuous woven cloth impregnated with a phenolic resin binder. This grade contains a medium weave canvas and is known primarily for it's mechanical properties. This grade is not recommended for primary insulation.

NEMA grades C Canvas Cotton-Cloth Reinforced Phenolic -- natural color is typically light tan to brown. C grades are composed of a continuous woven cloth impregnated with a phenolic resin binder. These grades contain a medium weave canvas and are known primarily for their mechanical properties. These grades are not recommended for primary electrical insulation. (Grade C certifies to Mil-I-13768/16 FBM, IEC 60893-3 Type 4, PF CC 201)

 Chemical Resistance Chart

Canvas Tubes    Canvas Sheets  Canvas Bars


Tubes Wall Thickness Options
.031" .062" .093" .125"
.187" .250" .375" .500"
.750" 1.00"







.125" Tubes Wall Thickness - NEMA C Grade Canvas Phenolic Canvas Tubes
Part # OD (in.) ID (in.) Minimum Order (ft.) Price Per Foot Order Online
